TROPO-6X9-COX // 80 Watts RMS 6x9” Shallow-Mount Car Speakers, Pair
CT Sounds designed the Tropo 6x9” shallow-mount coaxial speakers to compliment aftermarket subwoofer setups without stealing electrical (power) from your subwoofers and needing a 4-channel amplifier for these speakers to perform. These 6x9” speakers are engineered to be loud and clear on head-unit power while still offering solid mid-bass and not distorting at higher volume levels.
| Quick Facts: | |
| RMS Power: | 80 Watts (Pair) |
| MAX Power: | 160 Watts (Pair) |
| Impedance: | Single 4-Ohm |
| Mounting Depth: | 2.24" |
Many vehicle manufacturers (Ford, Chevy, Toyota, etc.) have very shallow speaker slots which makes it challenging to install aftermarket speakers without the window glass hitting the speaker magnet when rolling it down. To prevent this issue, you need to add spacers to lift the speaker, however, this creates a new problem where the speaker starts to contact the door panel due to cone excursion. The CT Sounds Tropo 6x9” has a 2.24” mounting depth (unheard of!) and is the only 6x9” speaker in car audio that offers a solution at the 80-watt rms power level.
Do your stock speakers sound distorted at higher volumes? Are you craving speakers that get loud and sound clean and can keep up with your subwoofer setup? Are you looking for an inexpensive way to get your speakers on the same level as your subwoofers? If yes, these are the perfect speakers for you!
| General Specifications: | |
| Speaker Size: | 6x9" |
| Speaker Type: | 2-Way Coaxial Speaker Set |
| Impedance Per Speaker: | Single 4-Ohm |
| Power Per Speaker: | 40W (RMS) | 80W (MAX) |
| Total System Power: | 80W (RMS) | 160W (MAX) |
| Voice Coil Size: | 1.00" |
| Voice Coil Wire Material: | EISV |
| Voice Coil Bobbin Material: | Kapton |
| Magnet Diameter: | 85 mm |
| Magnet Height: | 13 mm |
| Magnet Weight: | 11 Oz |
| Magnet Type: | Y30 |
| Cone Material: | Black Vacuum Polypropylene |
| Surround Material: | 65° Nitrile Butadiene Rubber |
| Basket Type: | 0.7 mm SPCC Steel |
| Terminal Type: | Steel Plate (Big Plate = Positive) |
| Woofer Specifications: | |
| Output SPL (@1w/1m): | 89 dB |
| QTS: | 0.803 |
| Frequency Response (@SPL -10dB): | 30 Hz - 20 kHz |
| Resonant Frequency: | 60 Hz |
| Sweep Voltage: | 8.76 V |
| Crossover Point: | 4.5 kHz |
| Tweeter Specifications: | |
| Tweeter Size: | 13 mm |
| Tweeter Type: | Black Silk Diaphragm |
| Tweeter Voice Coil Material: | EISV |
| Magnet Type: | N35 |
| Output SPL (@1w/1m): | 89 dB |
| Frequency Response (@SPL -10dB): | 1500 Hz ~ 20 kHz |
| Sweep Voltage: | 2.8 V |
| Crossover Specifications: | |

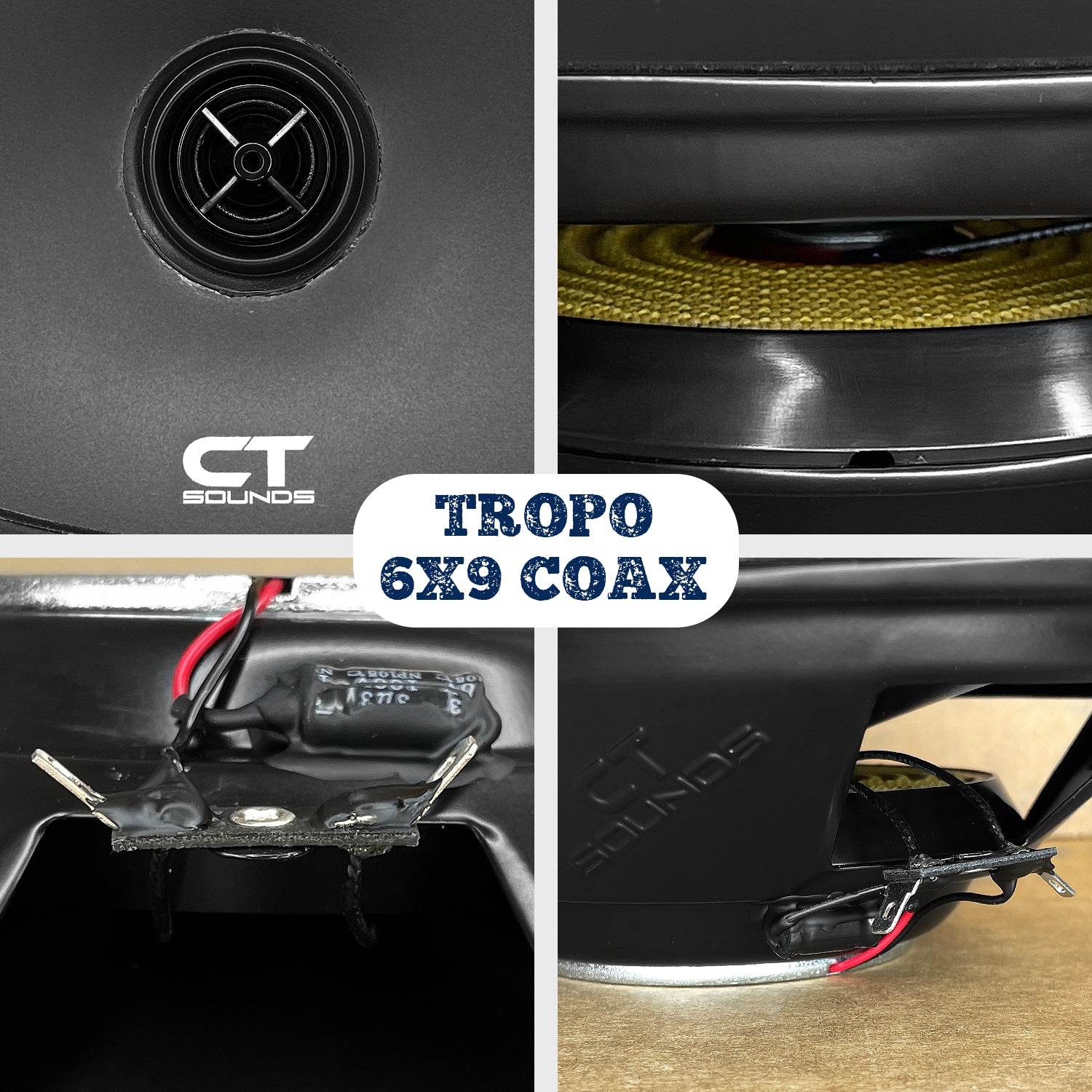

| Crossover Circuit: | 3.3 μF Electrolytic Capacitor / 100 V |
| Filter For Tweeter: | 6 dB/Oct |
| Mounting Specifications: | |

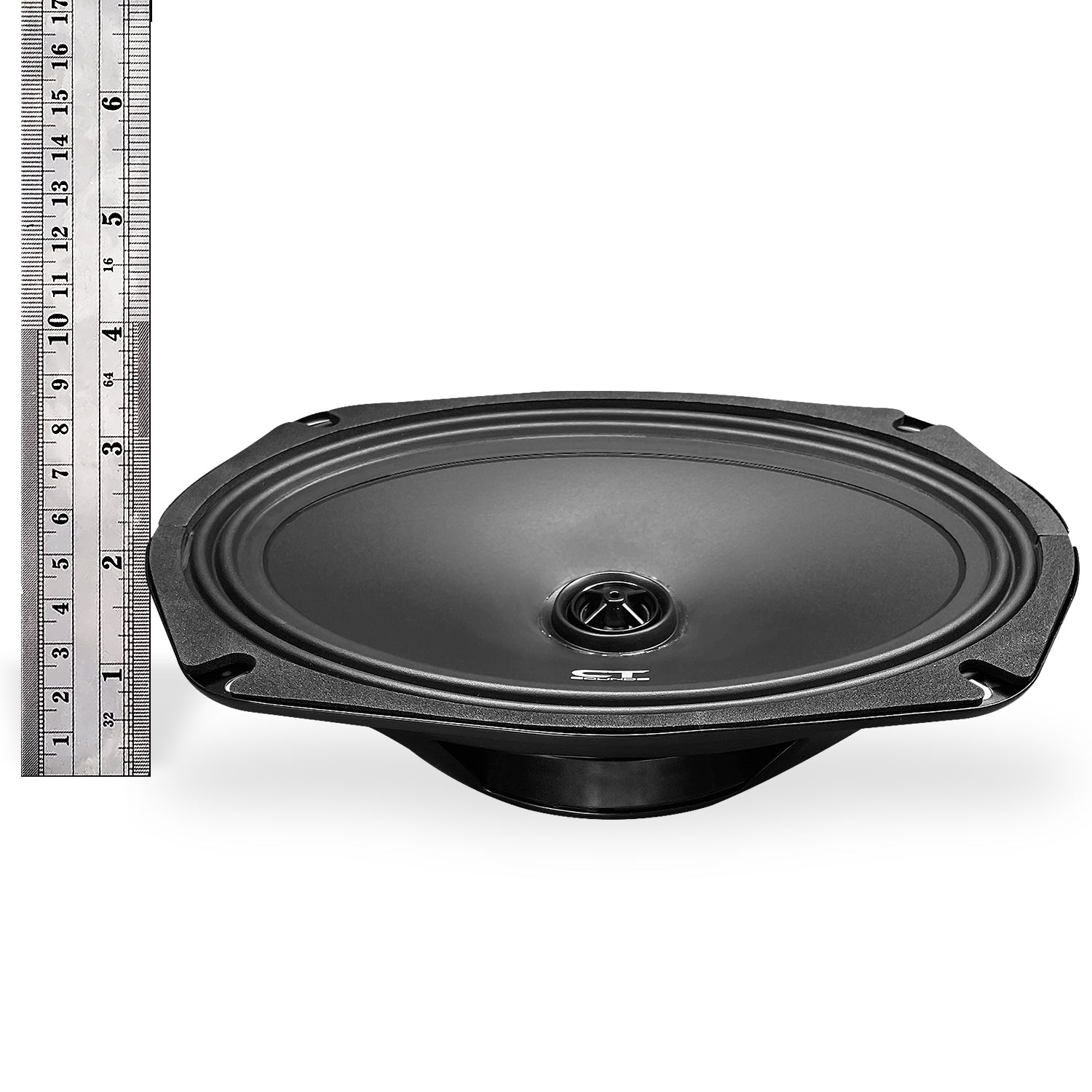

| Overall Diameter: | 9.29" x 6.37" |
| Cut-out Diameter: | 8.45" x 5.90" |
| Magnet Diameter: | 3.35" |
| Magnet Height: | 0.83" |
| Mounting Depth: | 2.24" |
| Overall Height: | 2.43" |
