Regular price 17% OFF Before: $119.99 Sale pricePrice: $99.99
/
$99.99
COIL CONFIGURATION
Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.795
Qms: 6.465
Qts: 0.708
Fs: 31.14 Hz
Vas: 110.74 L
Mms: 223.91 g
Cms: 0.117 m/N
Re: 3.8 Ω
Bl: 14.472 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cm³
SPL: 88.26 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ft³
Ported 2.5 ft³
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ft³
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

CT Sounds is proud to introduce the Bio 15” Car Subwoofer; our latest entry-level car audio subwoofer line designed to kickstart your journey into the world of car audio. The Bio 15” boasts a conservatively rated 500-watt rms power rating and delivers impressive performance while remaining budget-friendly.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 12 Gauge

The Bio 15” subwoofer comes equipped with a 2.4 inch - 4 layer high-temperature copper voice coil and a high narrow foam surround, providing precise and clear bass reproduction. Its advanced air cooling system will keep things running smoothly even during extended listening sessions, ensuring reliable performance when you need it most.

Designed to seamlessly pair with our pre-fabricated subwoofer enclosures, the Bio 15” Subwoofer offers a hassle-free solution for those who prefer not to build their own subwoofer box. When combined with our subwoofer enclosures, customers can expect deep bass on the lows, delivering an immersive audio experience that's sure to impress.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 15"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.4 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Single Stacked Y25 Ferrite Magnet
Bottom Plate Type: Signature White Zinc Low Carbon Iron Bottom Plate
Surround Type: High Narrow Foam Surround
Cone Type: Pressed Composite Paper
Tinsel Lead Type: Single Round Copper Tinsel Leads with 2% Silver
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: 8.5" Single-Layer Poly-Cotton Spider Suspension
T/S Parameters:
Qes: 0.803
Qms: 5.389
Qts: 0.698
Fs: 31.15 Hz
Vas: 117.95 L
Mms: 210.13 g
Cms: 0.124 m/N
Re: 7.4 Ω
Bl: 19.47 Tm
Le: /
Sd: 824 cm²
Xmax - Single Way (mm): 7.5 mm
Xmax - Single Way (cm): 0.75 cm
Vd (Sd*Xmax): 618 cm³
SPL: 88.50 dB
Box Specs
Subwoofer Measurements:
Mounting depth 6.42"
Cutout diameter 13.94"
Overall diameter 15.39"
Flat Response Curve (SQ):
Sealed 1.5 ft³
Ported 2.5 ft³
Tuning Frequency 28 Hz
Port Area 24 in²
Boomer Response Curve (SPL):
Sealed /
Ported 4 ft³
Tuning Frequency 28 Hz
Port Area 64 in²

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Wiring Calc.
Subwoofer Quantity
Voice Coil Impedance

Customer Reviews

Based on 11 reviews
73%
(8)
18%
(2)
0%
(0)
0%
(0)
9%
(1)
J
JJ A. (San Diego, CA)
First Sub purchase after having JL's

Purchased CT SOUNDS Single 15" Dual voice coil 4 ohm subwoofer, used other brand 23hz tuned vented box, used other brand amplifier 800.4 bridge tested at 600 watts 1ohm and 300 watts 4ohm, 2 gauge power, 12 gauge ofc speaker wire.

Having been used to the SQL quality of JL Audio subs, here is my honest review.

JL Audio really has a sound like no other, the fullness and quality of the sound from their subs are truly unsurpassed. However, Ct Sounds does produce a good sub at a good price. I tested the sub at 600 watts @ 1 ohm and 300 watts at 4 ohms. I currently am running the sub wiring at 8ohm configuration with a bridged amp for 2ohm for 4 ohms 300 watts rms.

What the sub DOES: The sub does hit hard at the 600 watt level. The sub does fill up the car space at the 300 watt level. If you're looking for something to fill the car cabin and not upset the neighbors, the 8ohm configuration absolutely does this.

What the sub DOESN'T do: Even in a 23hz vented enclosure, the sub does not hit the low lows loudly, in either 2ohm or 8ohm wiring. Yes you can hear them but the loudness isn't in the lows its in the higher end of the lows. Having said that, and knowing I am not running 1000 watts to it, it does very well at either configuration. Possibly due to the box, the sub does not hit all of the regular bass you would hear in bass boosted music or in regular rap like juvenile.

I was most afraid I would not have a sun that would hit the notes I wanted to hear, but this was NOT the case. For a $100 sub, it is 100% worth it. Please also note I have only been using the sub for about 8 hours over 4 days and the sound quality does typically improve the more you use a sub.

Would I buy this again? Yes. I think if anyone loves bass they would love this speaker. But when my first sub was a JL audio, it absolutely ruins you for any other sub. Even with that being the case, I am absolutely pleased with this sub, and then next 15 I get will again be from CT Sounds as I'm sure that the better the sub model, the better the sound.

J
John G. (Casper, WY)
Actually really nice

I’m not sure what you’re you’re expecting for 100$ driver. The Bio 15 almost certainly delivers just a notch or two above that expectation. Surprisingly large motor. Cone material is nice. Surround is supple. All around very well put together at such cost. Sounds like you’d want a 15 to. I’m using in a home audio application and it does the trick! If you’re thinking about buying one- you should do it. Even if you paid more this woofer leaves nothing to complain about

D
DeShawn H. (Grand Rapids, MI)
First time buyer, but I'm coming back for more

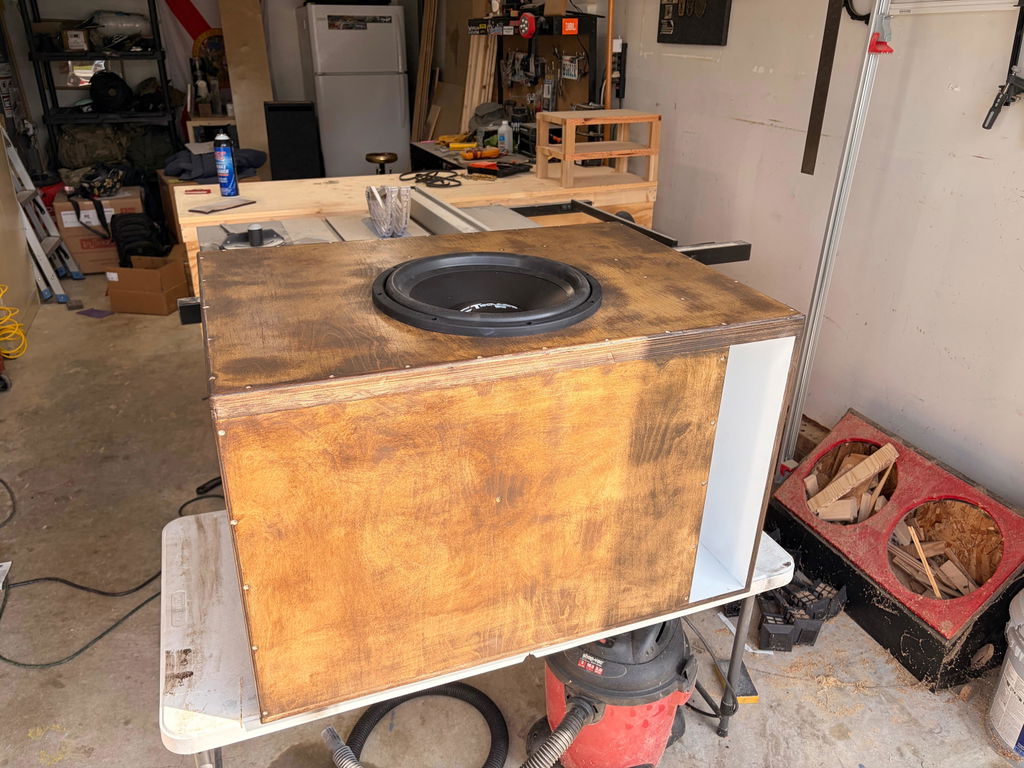

Well of course it killed that pyle that I just was using in a p.a. box, but I'm going to get a custom made box for my basement of boom.
#cdshawn

M
Matthew R. (Dallas, TX)
Impressed

Fast service and a quality product!

A
Aiden R. (Huntersville, NC)
Bio 15

Bought 4 of these subs have them wired to 1 ohm and put them in the back of my Tahoe. I had 4 jlaudio 10w3s before and I'm running the cts off the same amp I had for the jls and these are so much louder than anything I've heard I love them so much
