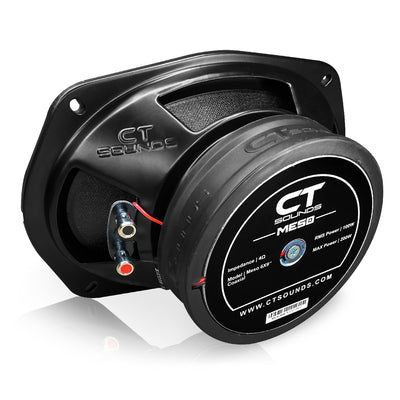

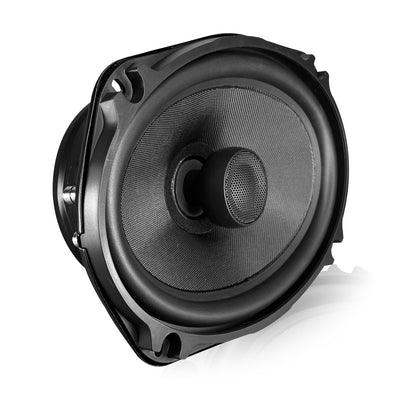

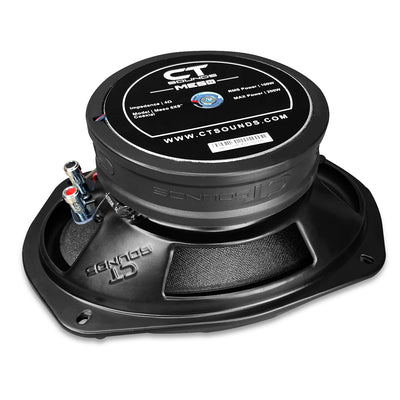

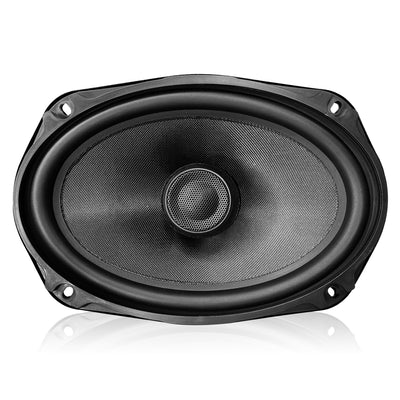

Meso 6x9 Inch Coaxial Speaker Set

Experience the real meaning of car audio with those CT Sounds Meso 6x9 Inch Car Audio Coaxial Speakers (Pair). These speakers are truly great for rear door applications as they cover a lot of midbass and their frequency response coverage is fairly wide. This, undoubtedly is, one of the best car audio speakers set worth the bucks. They come with a pair of protection grilles as well. Each speaker includes quality black stamp steel basket. The plastic polypropylene (PP) cone and NBR (Nitrile Butadiene Rubber) surround aids to achieve quality audio even though the volume is high! Check out for further details below-

Whats in the box:

• 2 x Meso 6x9" Car Audio Coaxial Speakers

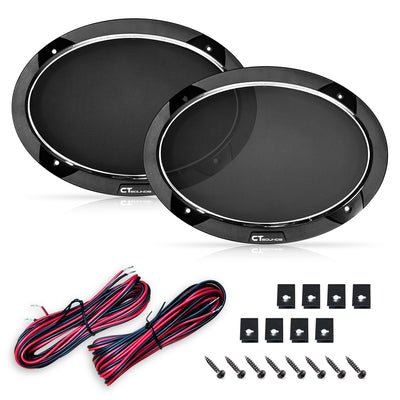

• 2 x Speaker Grilles

Features:

1. Each speaker has fiberglass cone with NBR (Nitrile Butadiene Rubber) surround
2. Yellow color PC+NOMEX spider (white Zinc coated) with 6mm top plate and 5mm back plate
3. Voice coil of 1.5" / 38mm (dia) at each speaker
4. Y30 ferrite magnet at each speaker
5. Each speaker has 25mm silk-dome tweeter covered with metal mesh grille
6. Small crossover circuitry attached with speaker basket
7. Quality Copper Clad Aluminium Wire (CCAW) used for tweeters connectivity
8. Spring type terminals for speaker connectivity, RED one for Positive (+ve) & BLACK one for Negative (-ve)
9. Each speaker has black stamp steel basket with black powder paint on them
10. Embossed logo on speaker basket & around speaker magnet for a bold outlook

Technical Specifications:

1. Speaker size: 6x9"
2. Speaker type: Coaxial
3. Impedance per speaker (woofer+tweeter): 4-Ohm
4. Power per speaker: 60W (RMS) | 120W (MAX)
5. Total system power: 120W (RMS) | 240W (MAX)

Woofer:

1. Voice coil (dia): 1.5"
2. Rated impedance: 4Ω (Ohms)
3. Sweep voltage: 15.5 V
4. Output SPL (@1w/1m): 89 dB
5. Resonant frequency: 58 Hz
6. Frequency response (@SPL -10dB): 40 Hz ~ 6 kHz
7. Magnet weight: 33 Oz
8. Magnet type: Y30 ferrite

Tweeter:

1. Rated impedance: 4Ω (Ohms)
2. Sweep voltage: 2.8 V
3. Output SPL (@1w/1m): 92dB
4. Tweeter size (dia): 25 mm
5. Tweeter type: Silk-dome covered with metal mesh face grille
6. Magnet type: Neo

Crossover:

1. Crossover circuit: 3.3μF capacitor / 50V
2. Filter for tweeter: 6dB

Mounting / Installation Parameters:

1. Cutout diameter: 214mm / 8.4"
2. Outer diameter: 266mm / 10.5"
3. Mounting depth: 86mm / 3.4"
