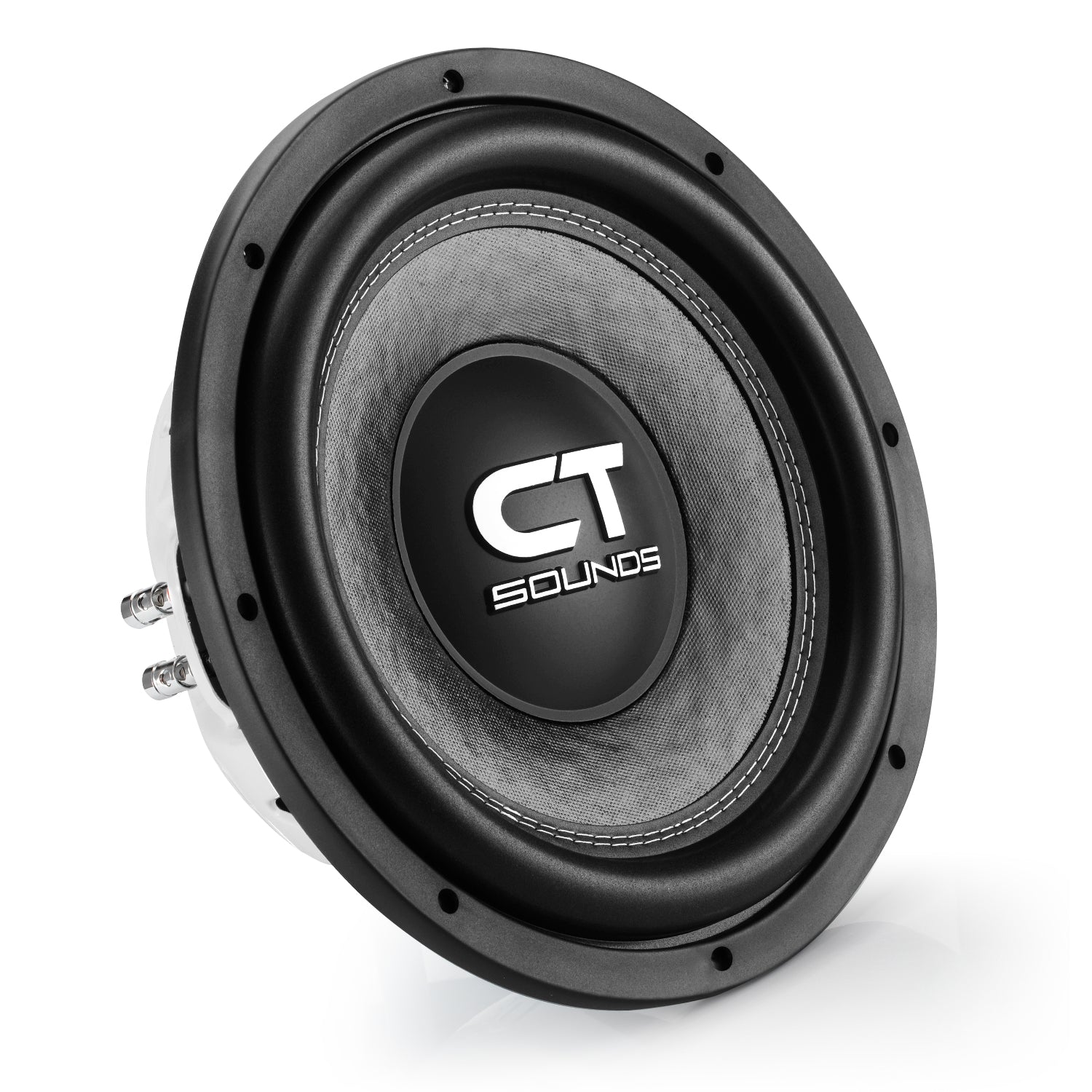

HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer
HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer
HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer
HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer
HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer
HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer

HYDRO-12 // 500 Watt RMS 12 Inch Shallow Mount Subwoofer

Regular price 26% OFF Before: $169.99 Sale pricePrice: $124.99
/
$124.99
COIL CONFIGURATION
Details

CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 500-watt 12” shallow-mount subwoofer with a mounting depth below 4.5” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Configuration: Dual 2 Ohm
Use Cases: Sealed & Ported Enclosures

Our 1st prototype utilized a 61.1 mm voice coil & 75 oz magnet resulting in a high QES rating of 0.89 and low EBP of 37.87. The 2nd prototype utilized a 50.8 mm voice coil & 75 oz magnet resulting in a slightly lower QES rating of 0.716 and a slightly higher EBP of 47.07. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 4.5”.

The 3rd and final prototype uses a 61.1 mm voice coil & 92 oz magnet resulting in a reduced QES rating of 0.490 and a balanced EBP of 70.73. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is a 12” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 12"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.40 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Y35
Bottom Plate Type: Low Carbon Iron
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 3% Carbon Fiber Reinforcement
Tinsel Lead Type: Single Braided Flat Copper Tinsel Leads
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: Poly-Cotton Blend
T/S Parameters:
Qes: 0.490
Qms: 5.850
Qts: 0.453
Fs: 34.66 Hz
Vas: 38.150 L
Mms: 204.701 g
Cms: 0.103 m/N
Re: 3.9 Ω
Bl: 18.820 Tm
Le: /
Sd: 510.7 cm²
Xmax - Single Way (mm): 11 mm
Xmax - Single Way (cm): 1.1 cm
Vd (Sd*Xmax): 561.77 cm²
SPL: 87.14 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 11.10"
Overall diameter 12.79"
Mounting depth 4.52"
Box Specifications:
Displacement 0.065 ft3
Box Recommendations:
Sealed 0.75 ft3
Ported 1.5 ft3
Tuning Frequency 32 Hz
Port Area 24 in2

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 500-watt 12” shallow-mount subwoofer with a mounting depth below 4.5” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.

Quick Facts:
RMS Power: 500 Watts
MAX Power: 1000 Watts
Coil Configuration: Dual 4 Ohm
Use Cases: Sealed & Ported Enclosures

Our 1st prototype utilized a 61.1 mm voice coil & 75 oz magnet resulting in a high QES rating of 0.955 and low EBP of 37.07. The 2nd prototype utilized a 50.8 mm voice coil & 75 oz magnet resulting in a slightly lower QES rating of 0.769 and a slightly higher EBP of 46.23. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 4.5”.

The 3rd and final prototype uses a 61.1 mm voice coil & 92 oz magnet resulting in a reduced QES rating of 0.526 and a balanced EBP of 70.04. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is a 12” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.

Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 12"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 500 Watts
MAX Power: 1000 Watts
Voice Coil Type: 2.40 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Y35
Bottom Plate Type: Low Carbon Iron
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 3% Carbon Fiber Reinforcement
Tinsel Lead Type: Single Braided Flat Copper Tinsel Leads
Terminal Type: 12 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: Poly-Cotton Blend
T/S Parameters:
Qes: 0.526
Qms: 5.444
Qts: 0.480
Fs: 36.84 Hz
Vas: 36.150 L
Mms: 191.187 g
Cms: 0.097 m/N
Re: 6.4 Ω
Bl: 22.215 Tm
Le: /
Sd: 510.7 cm²
Xmax - Single Way (mm): 11 mm
Xmax - Single Way (cm): 1.1 cm
Vd (Sd*Xmax): 561.77 cm²
SPL: 87.40 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 11.10"
Overall diameter 12.79"
Mounting depth 4.52"
Box Specifications:
Displacement 0.065 ft3
Box Recommendations:
Sealed 0.75 ft3
Ported 1.5 ft3
Tuning Frequency 32 Hz
Port Area 24 in2

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
