TROPO-6-5-COM // 6.5” 160 Watt 2-Way Shallow Component Speaker Set
CT Sounds designed the Tropo 6.5” shallow-mount component speaker set to compliment aftermarket subwoofer setups without stealing electrical (power) from your subwoofers and needing a 4-channel amplifier for these speakers to perform. The 6.5” 2-way component speaker set is engineered to be loud and clear on head-unit power while still offering solid mid-bass and not distorting at higher volume levels.
| Quick Facts: | |
| RMS Power: | 80 Watts (Pair) |
| MAX Power: | 160 Watts (Pair) |
| Impedance: | Single 4-Ohm |

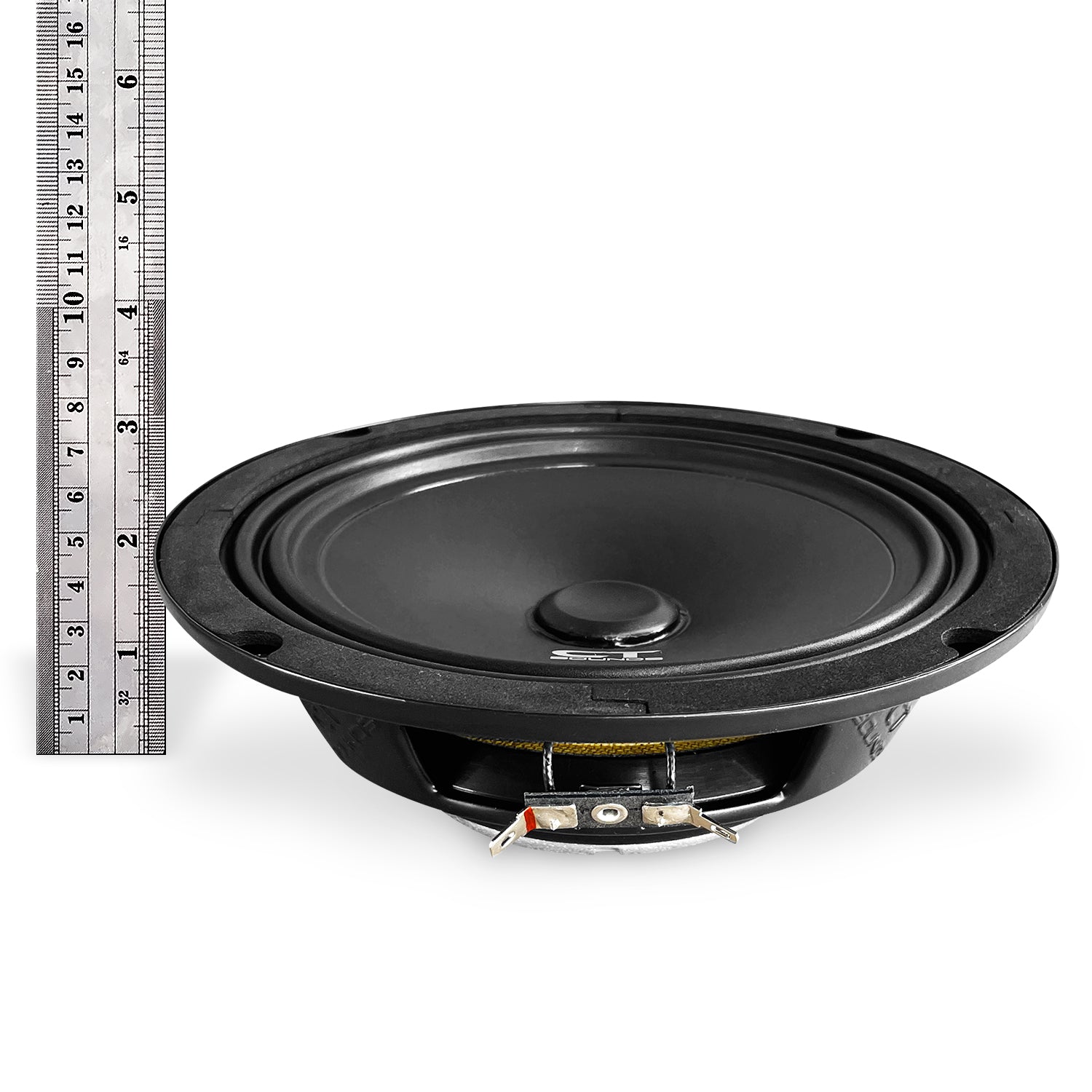

| Mounting Depth: | 1.81" |
Many vehicle manufacturers (Ford, Chevy, Toyota, etc.) have very shallow speaker slots, making it challenging to install aftermarket speakers without the window glass hitting the speaker magnet when rolling it down. To prevent this issue, you need to add spacers to lift the speaker, however, this creates a new problem where the speaker starts to contact the door panel due to cone excursion. The CT Sounds Tropo 6.5” component speaker has a 1.81” mounting depth (unheard of!) and is the only 6.5” component woofer in car audio that offers a solution at the 80-watt rms power level.
Do your stock speakers sound distorted at higher volumes? Are you craving speakers that get loud and sound clean and can keep up with your subwoofer setup? Are you looking for an inexpensive way to get your speakers on the same level as your subwoofers? If yes, these are the perfect speakers for you!
| General Specifications: | |
| Speaker Size: | 6.5" |
| Speaker Type: | 2-Way Component Speaker Set |
| Impedance Per Speaker: | Single 4-Ohm |
| Power Per Speaker: | 40W (RMS) | 80W (MAX) |
| Total System Power: | 80W (RMS) | 160W (MAX) |
| Woofer Specifications: | |
| Voice Coil Size: | 1.00" |
| Voice Coil Wire Material: | EISV |
| Voice Coil Bobbin Material: | Kapton |
| Magnet Weight: | 9 Oz |
| Magnet Type: | Ferrite |
| Cone Material: | Black Vacuum Polypropylene |
| Surround Material: | 70° Nitrile Butadiene Rubber |
| Basket Type: | Steel |
| Terminal Type: | Steel Plate (Big Plate = Positive) |
| Output SPL (@1w/1m): | 87 dB |
| Frequency Response (@SPL -10dB): | 30 Hz - 20 kHz |
| Resonant Frequency: | 75 Hz |
| Sweep Voltage: | 8.76 V |
| X-Over Point: | 4.0 kHz |
| Tweeter Specifications: | |
| Tweeter Size: | 20 mm |
| Tweeter Type: | Silk-Dome |
| Magnet Type: | Neodymium |
| Output SPL (@1w/1m): | 90 dB |
| Frequency Response (@SPL -10dB): | 1000 Hz ~ 20 kHz |
| Sweep Voltage: | 2.8 V |
| Crossover Specifications: | |
| Crossover Circuit: | 3.3 μF capacitor / 100 V |
| Filter For Woofer: | 12 dB |
| Filter For Tweeter: | 12 dB |
| LPF X-Over Point: | 20 Hz - 3.5 kHz |
| HPF X-Over Point: | 3.5 kHz - 20 kHz |

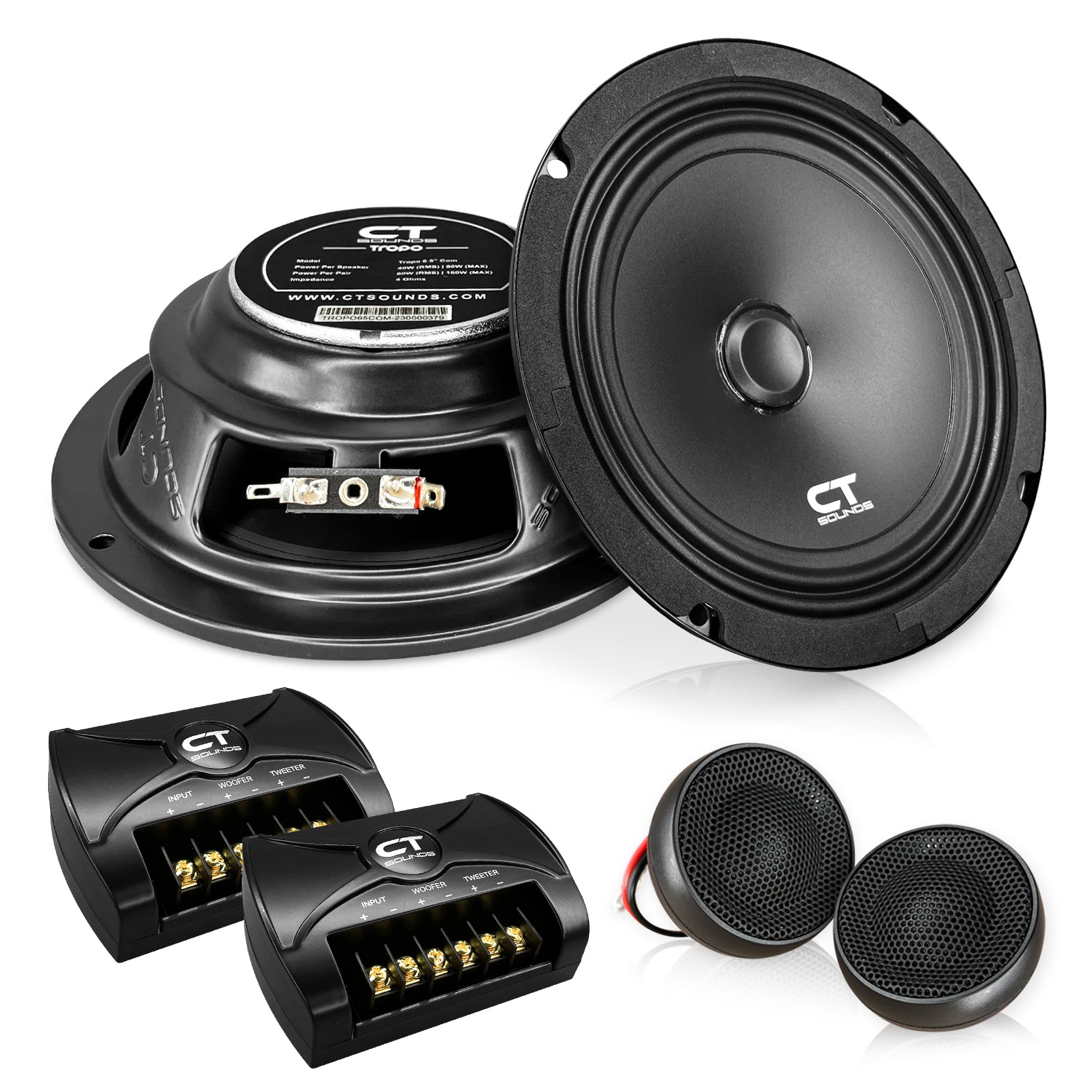

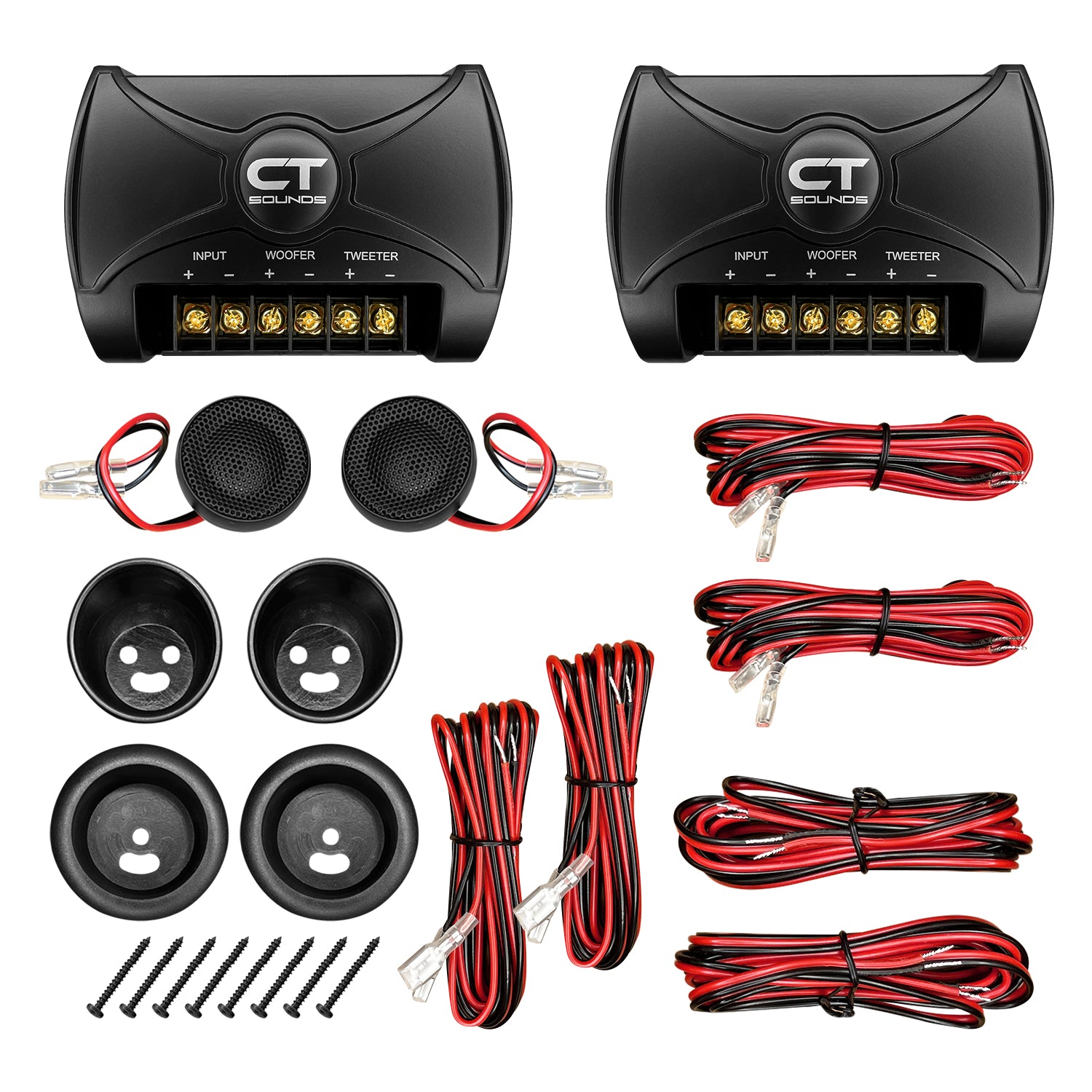

| What's Included: | |
| 6.5" Component Woofer | x2 |
| 0.75" Silk-Dome Tweeter | x2 |
| 12 dB Passive Crossover Network | x2 |
| 10FT - Speaker Wire for Woofer | x2 |
| 6FT - Speaker Wire for Tweeter | x2 |
| 6FT - Speaker Wire for Crossover | x2 |
| 1.25" Mounting Screws | x8 |
| Flush-Mount Tweeter Pod | x2 |
| Angled Tweeter Pod | x2 |
| CT Sounds Decal Sticker (Square) | x1 |
| Mounting Specifications: | |
| Overall Diameter: | 6.59" |
| Cut-out Diameter: | 5.60" |
| Magnet Diameter: | 3.35" |
| Magnet Height: | 0.67" |
| Mounting Depth: | 1.81" |
| Overall Height: | 2.01" |
| Screwhole Diameter: | 6.12" |
