ATv2-2300.1d // 2500 Watt RMS Monoblock Car Audio Amplifier
The CT Sounds ATv2-2300.1d monoblock class d car amplifier will deliver the power you need to destroy the competition in the SPL lanes. Rated at 13.2v, this monoblock amplifier will deliver over 2500 watts RMS power at 1 ohm. The car monoblock amplifier is strappable (slave/master switch) so that you can get more power output should your system require it.

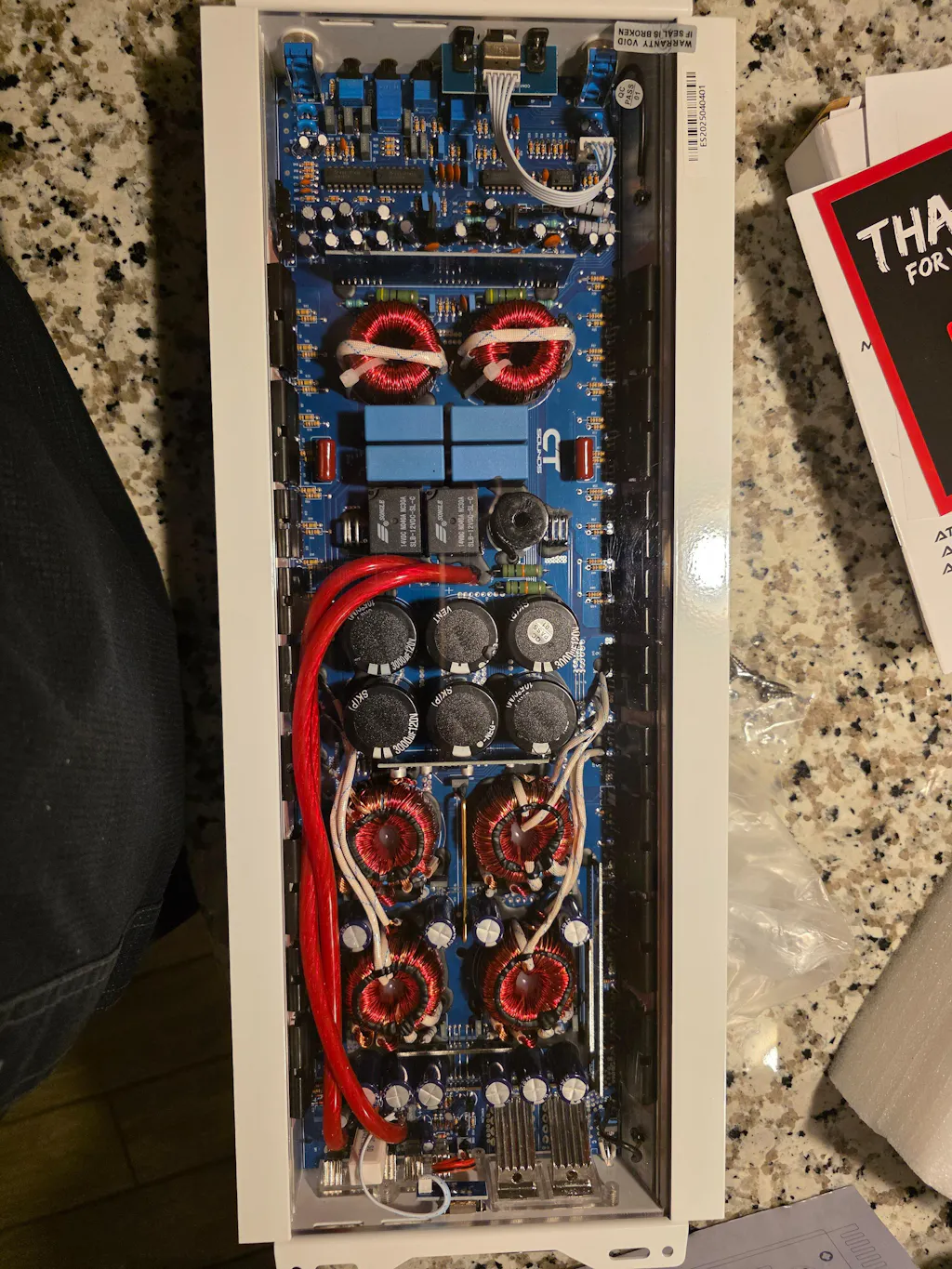

Engineered to be the best in its class, the amplifier uses an advanced PCB board featuring industry-leading capacitors, MOSFET pulse width modulated power supply, high-quality transformers, and cutting-edge inductors. The amplifier comes equipped with a 4-way protection circuitry along with reverse polarity protection.

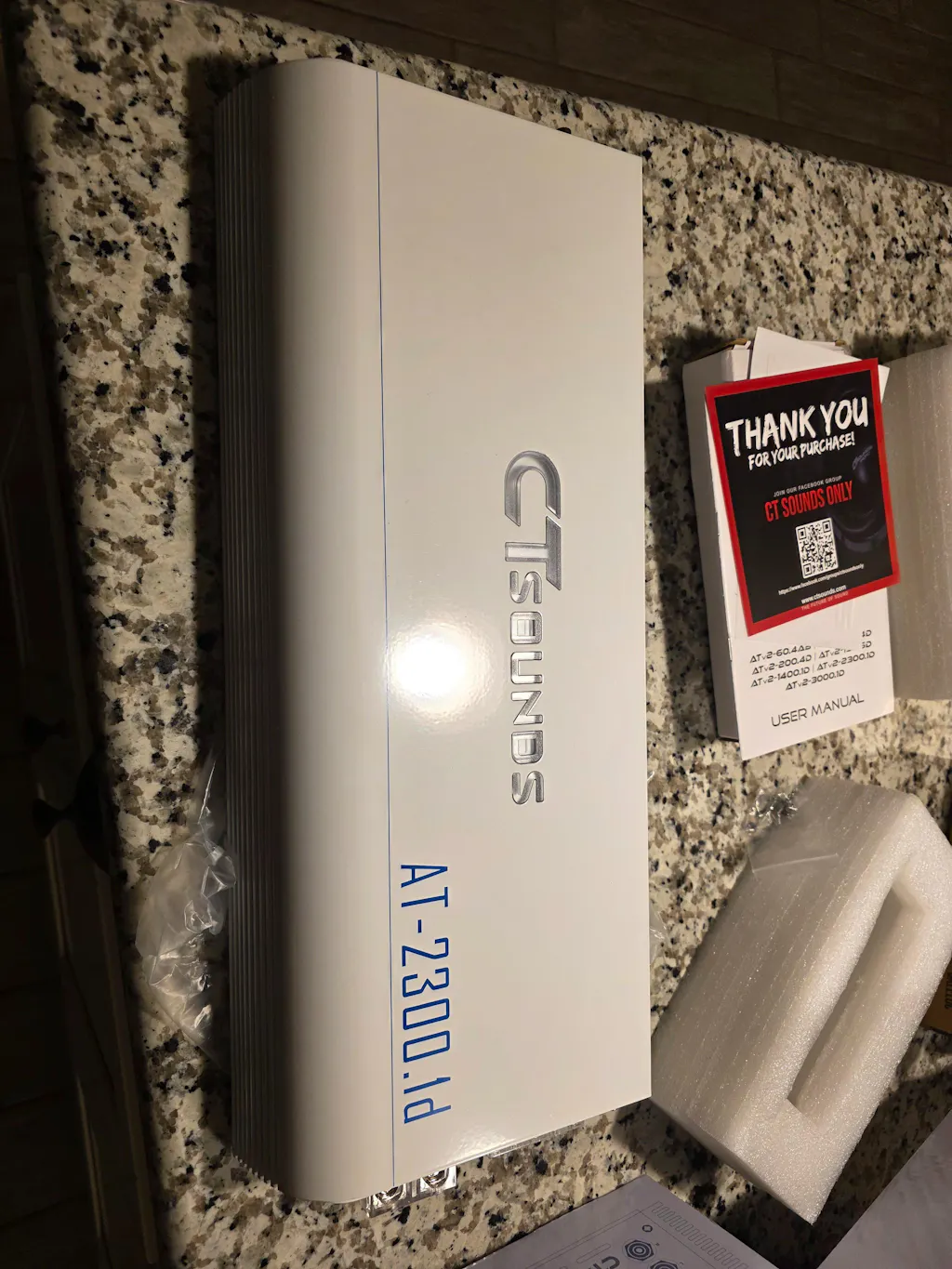

The plexiglass backing, illuminated LED CT Sounds logo, and white chassis give this amplifier an unbeatable appearance. Variable adjustment controls feature gains, subsonic, bass boost, low pass filter, and phase settings so you can get the exact sound you are looking for out of your amplifier. Included with the amplifier is the highly demanded AT Series On/Off Bass Knob which not only lets you adjust the bass boost but also displays your system voltage.
| Quick Facts: | |
| RMS Power: 1Ω @ 13.2v | 2300 Watts x 1-Channel |
| RMS Power: 2Ω @ 13.2v | 1200 Watts x 1-Channel |
| RMS Power: 4Ω @ 13.2v | 650 Watts x 1-Channel |
| Power & Ground Input Size: | 0 Gauge |
| Speaker Input Size: | 8 Gauge |
| Features: | |
| AT Series Bass Knob Included: |
✔️ |
| Continuously-Variable Input Gain Control |
✔️ |
| Remote Turn-On / Turn-Off Circuit | ✔️ |
| MOSFET Pulse Width Modulated Power Supply | ✔️ |
| Soft Turn-On Circuit | ✔️ |
| High Voltage / Low Voltage Protection Circuit |
✔️ |
| Thermal and Speaker Short Protection Circuit | ✔️ |
| LED Power and Protection Indicators |
✔️ |
| Nickle Plated Tiffany Style RCAs |
✔️ |
| Bass Knob Features: | |
| AT Series Bass Knob: | 1. Remote Gain Control 2. Clip Light Indicator 3. Built-In Voltmeter 4. Pushable On/Off Switch |
| Technical Specifications: | |
| Amplifier Type: |
Monoblock Amplifier |
| Amplifier Circuitry: | Class D |
| Strappable? | Yes; Master/Slave Switch |
| RMS Power @ 1 Ohm: |
2300 Watts x 1-Channel (13.2v) |
| RMS Power @ 2 Ohm: |
1200 Watts x 1-Channel (13.2v) |
| RMS Power @ 4 Ohm (Bridged): |
650 Watts x 1-Channel (13.2v) |
| Recommended Fuse: |
250A |
| Power & Ground Input Size: |
0 Gauge |
| Speaker Input Size: |
8 Gauge |
| Gain Adjustment: |
0.18v - 5.4v |
| Low Pass Filter (LPF): |
35 Hz - 250 Hz |
| Subsonic Filter (HPF): |
10 Hz - 50 Hz |
| Bass Boost: |
0 dB - 18 dB |
| Bass Boost Frequency: |
50 Hz |
| Phase Adjustment: |
0° - 180° |
| Frequency Response: |
10 Hz - 250 Hz |
| Signal-To-Noise Ratio (S/N): |
90 dB |
| Damping Factor: |
200 |
| Input Impedance: |
30 Kohms |
| Input Sensitivity: |
180 mV |
| Operating Voltage: |
9v - 16v |
| Minimum Impedance: |
1 ohm |
| Dimensions: | |
| Length: |
19.17" |
| Width: |
7.59" |
| Height: |
2.28" |
