MESO-8 // 800 Watts RMS 8 Inch Car Subwoofer

$179.99 Regular price $229.99 Sale price

You Save 22% ($50.00)

$179.99
/

Description

The coveted Meso-8-D2 8 Inch Car Subwoofer provides a conservatively rated 800 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? The newest Meso-8 version was designed using competition mega foam surround, vastly improving the Xmax and excursion all while maintaining the responsiveness.

The subwoofer features a 2.4 inch - 4 layer copper-clad aluminum voice coil, 160 oz triple stacked Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual round weaved copper tinsel leads, and a Nomex blend spider pack. Boasting a conservative rating of 800 Watts RMS, this 8-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.

Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 8 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.

Quick Facts:
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 8 Gauge
Specifications
  • 8 Inch Dual 2 Ohm Coil Configuration
  • RMS Power: 800 Watts
  • MAX Power: 1600 Watts
  • 2.4 Inch - 4 Layer High-Temperature CCAW Voice Coil
  • Y35 Graded Triple Stacked Ferrite Magnet
  • Competition Mega Foam Surround
  • Composite Paper with 5% Carbon Fiber Reinforcement
  • Signature Chrome Plated Low Carbon Iron Bottom Plate
  • Advanced Air Cooling System
  • Dual Round Weaved Copper Tinsel Leads
  • 8 Gauge Push Terminals
  • Fs: 46.40 Hz
  • Qms: 5.42
  • Qes: 0.55
  • Qts: 0.50
  • Vas: 3.96 L
  • Cms: 0.08 mm/N
  • Mms: 150 gr
  • Sd: 189 cm²
  • Re: 1.04
  • Le: 0.53
  • Bl: 9.12 n/a
  • Sensitivity: 82.60 dB
  • Xmax: 15mm (one-way)
Box Specifications
Subwoofer Measurements:
Cutout diameter 7.24"
Overall diameter 8.82"
Mounting depth 6.61"
Box Specifications:
Port Area 15 in2
Displacement 0.10 ft3
Flat Response Curve (SQ):
Sealed 0.5 ft3
Ported 0.5 ft3
Tuning Frequency 34 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 0.75 ft3
Tuning Frequency 39 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Description

The coveted Meso-8-D4 8 Inch Car Subwoofer provides a conservatively rated 800 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? The newest Meso-8 version was designed using competition mega foam surround, vastly improving the Xmax and excursion all while maintaining the responsiveness.

The subwoofer features a 2.4 inch - 4 layer copper-clad aluminum voice coil, 160 oz triple stacked Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual round weaved copper tinsel leads, and a Nomex blend spider pack. Boasting a conservative rating of 800 Watts RMS, this 8-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.

Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 8 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.

Quick Facts:
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 8 Gauge
Specifications
  • 8 Inch Dual 4 Ohm Coil Configuration
  • RMS Power: 800 Watts
  • MAX Power: 1600 Watts
  • 2.4 Inch - 4 Layer High-Temperature CCAW Voice Coil
  • Y35 Graded Triple Stacked Ferrite Magnet
  • Competition Mega Foam Surround
  • Composite Paper with 5% Carbon Fiber Reinforcement
  • Signature Chrome Plated Low Carbon Iron Bottom Plate
  • Advanced Air Cooling System
  • Dual Round Weaved Copper Tinsel Leads
  • 8 Gauge Push Terminals
  • Fs: 50.30 Hz
  • Qms: 4.85
  • Qes: 0.52
  • Qts: 0.52
  • Vas: 3.79 L
  • Cms: 0.08 mm/N
  • Mms: 133 gr
  • Sd: 189 cm²
  • Re: 1.65
  • Le: 0.70
  • BI: 11.00 n/a
  • Sensitivity: 83.22 dB
  • Xmax: 15mm (one-way)
Box Specifications
Subwoofer Measurements: Cutout diameter 7.24" Overall diameter 8.82" Mounting depth 6.61"
Box Specifications:
Port Area 15 in2
Displacement 0.10 ft3
Flat Response Curve (SQ):
Sealed 0.5 ft3
Ported 0.5 ft3
Tuning Frequency 34 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 0.75 ft3
Tuning Frequency 39 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Subwoofer Wiring Calculator
Subwoofer Quantity
Voice Coil Impedance

Customer Reviews

Based on 28 reviews
96%
(27)
0%
(0)
4%
(1)
0%
(0)
0%
(0)
A
A.M.

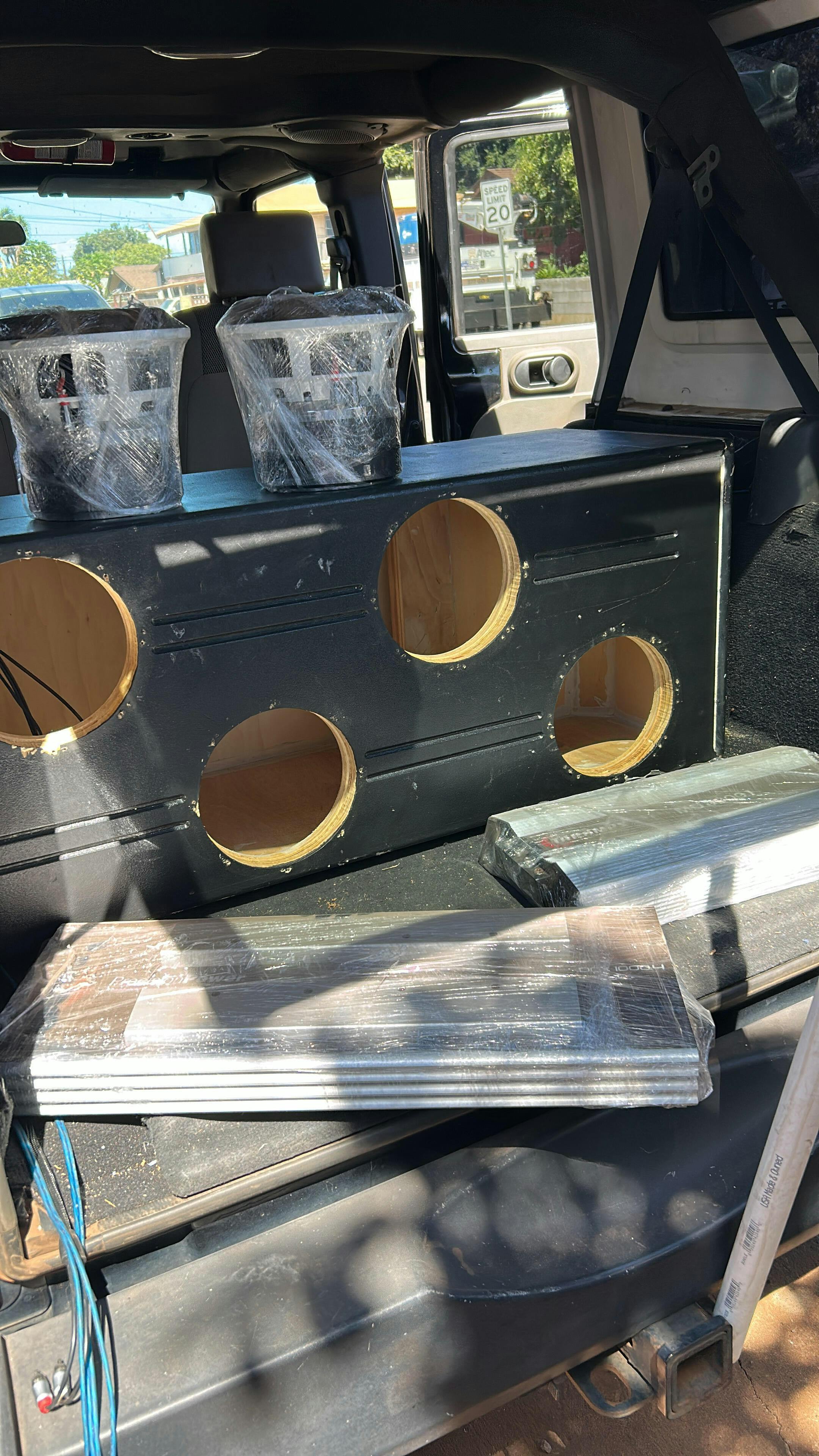

4 8s

Got some notes from ct box and played around with some numbers to come up with what I was looking for .
Ct box is a great place to start with numbers to fit your needs of what your looking for out of a box.
I couldn't stop with just 2 so I ended up doing 4 8s .
Was a fun bulid and still learning of course .thanks for the help Mr Mark.
Ol and also has 2 different tops Orange place for show .
And the other top Just plane MDF

D
D.
Little Sub, Big Sound

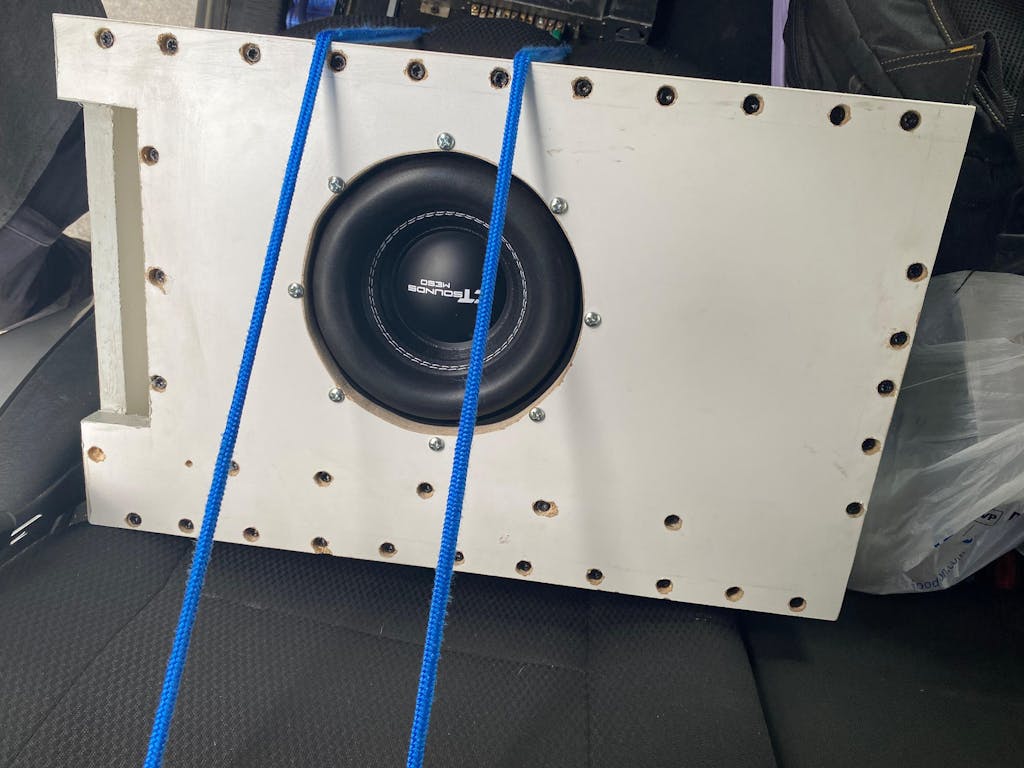

I am a speaker and sound system enthusiast of 28 years. Installed this sub into a 4th order band pass box and it performs much better than I expected. The original woofer for the box did well but the Meso 8 out performs it by miles. I am powering it with an Infinity 1000w RMS mono amp. Full wiring upgrade in the vehicle and a battery upgrade. This woofer is rated at 800w but takes the full 1000w and doesn't even break a sweet. I've been running this Meso 8 D4 for about a month and it's doing great. I also have a Meso 8 D2 that I've used for about 6 months. It has done great and seems pretty reliable. Looking for good quality and performance give these a try. On a side note, I had to reinforce the box this woofer is in so it wouldn't blow it apart :-O

B
B.S.
Holy crap! This is a beast

This is the beefiest sub I've ever owned plan and simple. I bought it to compare to my Crossfire C7 8 and I can honestly say it takes it. 1000+ watts all day no problem. The build quality is out of this world, if you want the baddest 8" out there for a decent price this is it hands down. Also came triple boxed to protect it in shipping

M
M.M.
Oh man!

I haven't hook it up yet but the look of this I very beefy. Got all my subs came in and the subwoofer boxes also.waiting for one more amp so I can start to hook it up in my Tahoe. I know I will be very please with all my subs.

J
J.l.
Amazing quality

Haven’t installed yet so I can’t say anything about sound output but I’m sure it’s at the same level of craftsmanship and packaging for safety and that’s second to none
