Regular price 26% OFF Before: $189.99 Sale pricePrice: $139.99
/
$139.99
COIL CONFIGURATION
Details

Eighteen miles up, you’re above the Troposphere, kick your stereo up a notch with the all-new OZONE-10-D2 10 Inch Entry Level SPL Car Subwoofer. Can you handle the feeling of the Ozone Layer in your car? Bass yourself to the upper layers of the atmosphere with explosive sound pressure.

The subwoofer features a 2.6 inch - 4 layer high-temperature copper voice coil, double slug Y30 grade optimized motor, stamped steel basket, flexible high foam surround, oversized 8 gauge push terminals, dual round weaved copper tinsel leads, and a premium grade spider pack. Boasting a conservative rating of 800 Watts RMS, this 10-inch subwoofer was designed as an entry-level SPL subwoofer that delivers the primordial bass that you don’t just hear, you feel.

Looking to drive the neighbors up a wall? You have come to the Ozone Layer; show your friends real bass, the CT Sounds Ozone 10 Inch Subwoofer smashes the competition without smashing your wallet.

Quick Facts:
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 8 Gauge
Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 10"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Type: 2.6 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Double Stacked Y30 Ferrite Magnet
Bottom Plate Type: Signature Chrome Low Carbon Iron Bottom Plate
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 3% Carbon Fiber Reinforcement
Tinsel Lead Type: Dual Round Weaved Copper Tinsel Leads
Terminal Type: 8 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: Poly-Cotton Blend
T/S Parameters:
Qes: 0.63
Qms: 6.1
Qts: 0.57
Fs: 34.6 Hz
Vas: 14.06 L
Mms: 231.95 g
Cms: 0.09 m/N
Re: 0.99 Ω
Bl: 8.9 Tm
Le: 0.966 mH
Sd: 330.6 cm²
Xmax - Single Way (mm): 15 mm
Xmax - Single Way (cm): 1.5 cm
Vd (Sd*Xmax): 495.9 cm³
SPL: 83.7 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 9.09"
Overall diameter 10.93"
Mounting depth 5.87"
Box Specifications:
Port Area 24 in 2
Displacement 0.09 ft 3
Flat Response Curve (SQ):
Sealed 1 ft 3
Ported 0.75 ft 3
Tuning Frequency 32 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 1.5 ft 3
Tuning Frequency 32 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

Eighteen miles up, you’re above the Troposphere, kick your stereo up a notch with the all-new OZONE-10-D4 10 Inch Entry Level SPL Car Subwoofer. Can you handle the feeling of the Ozone Layer in your car? Bass yourself to the upper layers of the atmosphere with explosive sound pressure.

The subwoofer features a 2.6 inch - 4 layer high-temperature copper voice coil, double slug Y30 grade optimized motor, stamped steel basket, flexible high foam surround, oversized 8 gauge push terminals, dual round weaved copper tinsel leads, and a premium grade spider pack. Boasting a conservative rating of 800 Watts RMS, this 10-inch subwoofer was designed as an entry-level SPL subwoofer that delivers the primordial bass that you don’t just hear, you feel.

Looking to drive the neighbors up a wall? You have come to the Ozone Layer; show your friends real bass, the CT Sounds Ozone 10 Inch Subwoofer smashes the competition without smashing your wallet.

Quick Facts:
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 8 Gauge
Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 10"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 800 Watts
MAX Power: 1600 Watts
Voice Coil Type: 2.6 Inch - 4 Layer High-Temperature Copper Voice Coil
Magnet Type: Double Stacked Y30 Ferrite Magnet
Bottom Plate Type: Signature Chrome Low Carbon Iron Bottom Plate
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 3% Carbon Fiber Reinforcement
Tinsel Lead Type: Dual Round Weaved Copper Tinsel Leads
Terminal Type: 8 Gauge Push Terminals
Basket Type: Stamped Steel
Spider Material: Poly-Cotton Blend
T/S Parameters:
Qes: 0.65
Qms: 5.71
Qts: 0.59
Fs: 36.8 Hz
Vas: 13.14 L
Mms: 218.86 g
Cms: 0.085 m/N
Re: 1.6 Ω
Bl: 11.13 Tm
Le: 0.959 mH
Sd: 330.06 cm²
Xmax - Single Way (mm): 15 mm
Xmax - Single Way (cm): 1.5 cm
Vd (Sd*Xmax): 495.09 cm³
SPL: 84.04 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 9.09"
Overall diameter 10.93"
Mounting depth 5.87"
Box Specifications:
Port Area 24 in 2
Displacement 0.09 ft 3
Flat Response Curve (SQ):
Sealed 1 ft 3
Ported 0.75 ft 3
Tuning Frequency 32 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 1.5 ft 3
Tuning Frequency 32 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Wiring Calc.
Subwoofer Quantity
Voice Coil Impedance

Customer Reviews

Based on 32 reviews
97%
(31)
3%
(1)
0%
(0)
0%
(0)
0%
(0)
N
Nicholas F. (Eunice, LA)
Awesome

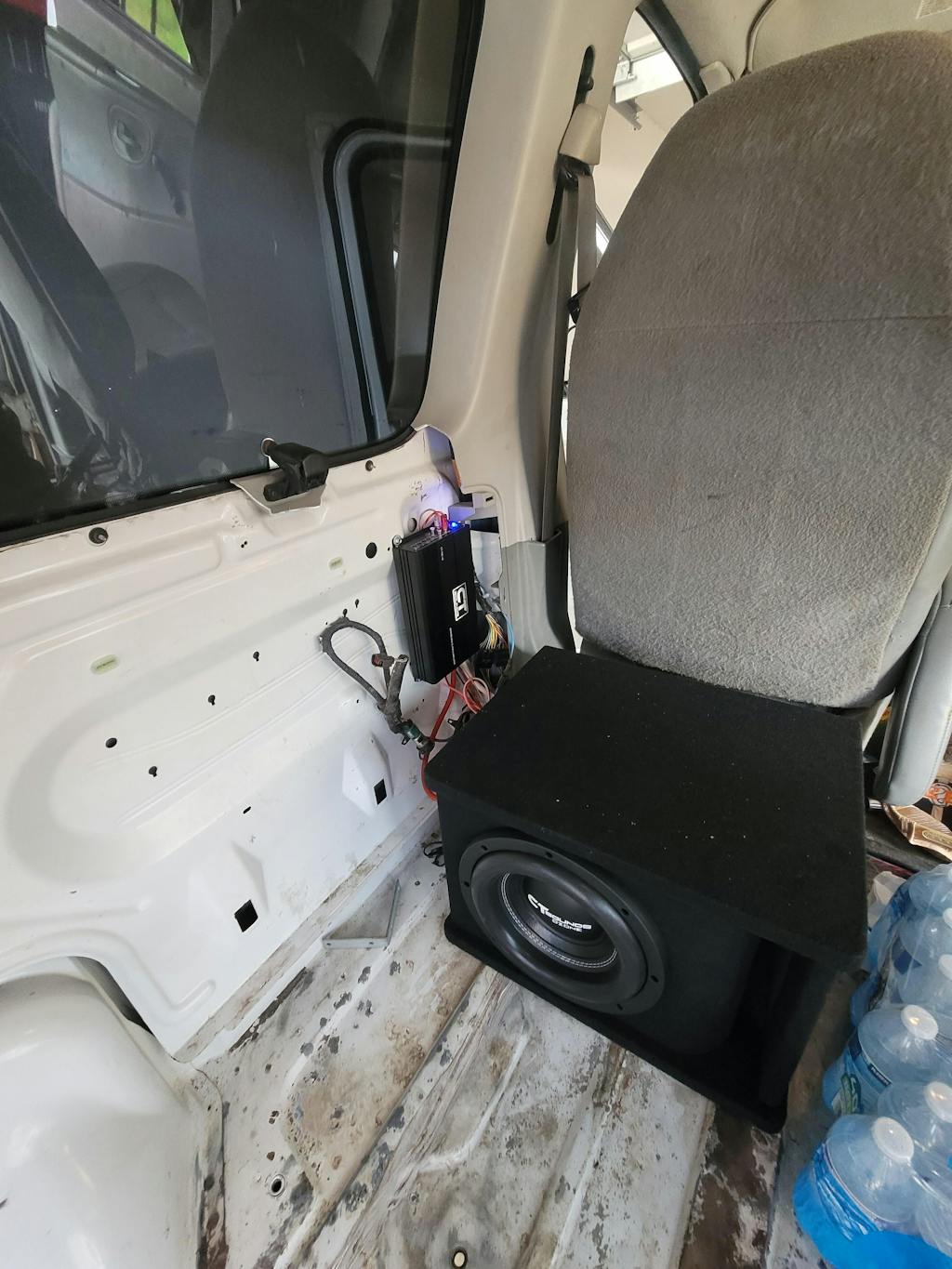

Got subs installed in my tuck these speakers hit so hard people think these are 15 in woofers very satisfied will purchase all CT Sounds audio from now
