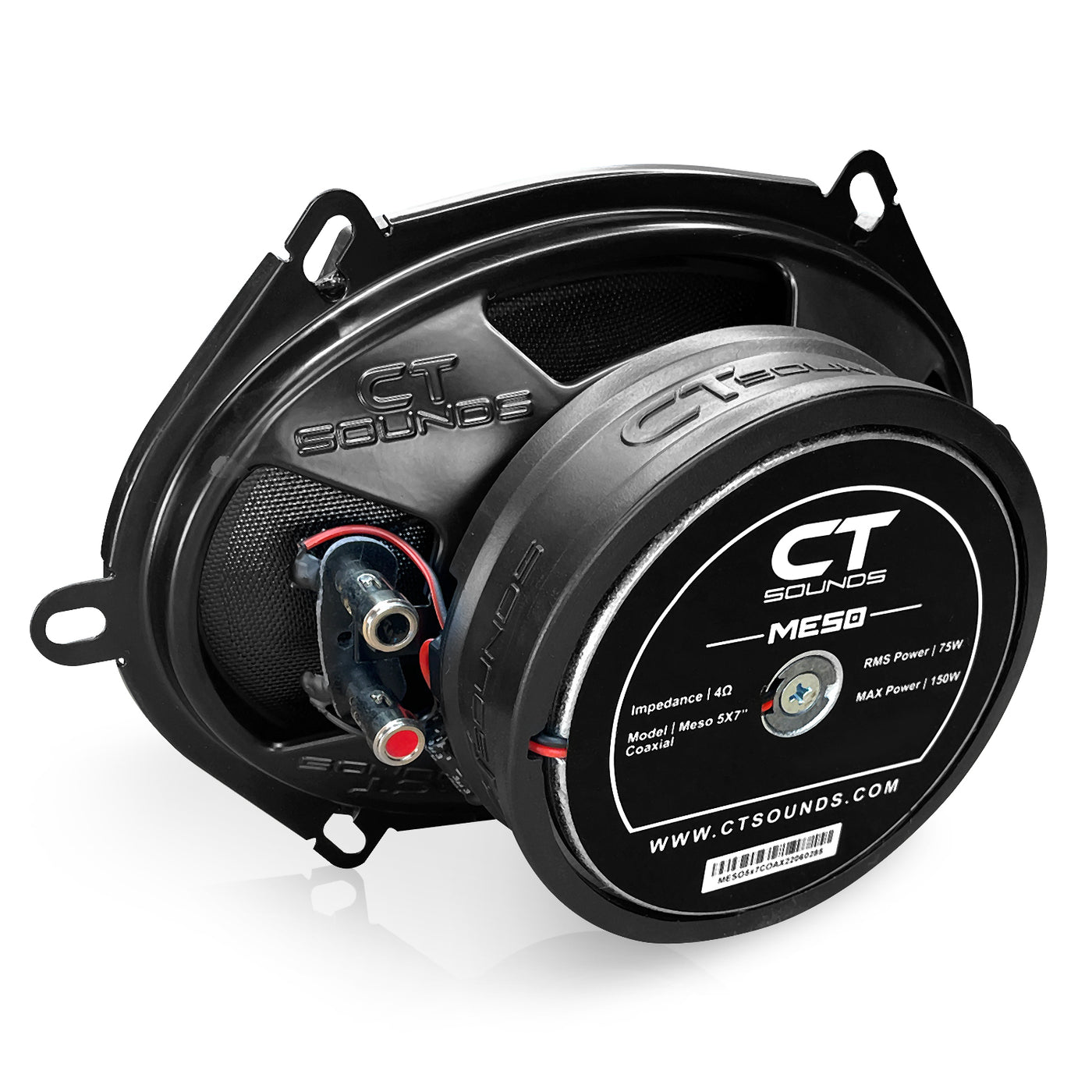

In order to experience some rich audio tones with a lot of midbass in 5x7" car audio speakers; its somewhat mandatory you experience the sound of CT Sounds Meso 5x7 Inch Car Audio Coaxial Speakers (Pair). This speakers set covers audio frequencies way higher and even gets way low than natural (the main reason for covering a lot of midbass). Two main reason for better quality audio is because of fiberglass cone with NBR (Nitrile Butadiene Rubber) surround & bigger (25mm) silk dome tweeters at the woofer center. These speakers goes as low as ~40Hz making them absolutely outstanding. With EISV wire wounds in speakers core voice coil; they last longer and push diaphragm to the fullest. Check out for further tech specs below-



Whats in the box:

• 2 x Meso 5x7" Car Audio Coaxial Speakers
• 2 x Woofer Protection Grilles

Features:

1. Each speaker has fiberglass cone with NBR (Nitrile Butadiene Rubber) surround
2. Yellow color PC+NOMEX spider (white Zinc coated) with 6mm top plate and 5mm back plate
3. Voice coil of 1.4" / 36mm (dia) at each speaker
4. Y30 ferrite magnet at each speaker
5. Each speaker has 25mm silk-dome tweeter covered with metal mesh grille
6. Small crossover circuitry attached with speaker basket
7. Quality Copper Clad Aluminium Wire (CCAW) used for tweeters connectivity
8. Spring type terminals for speaker connectivity, RED one for Positive (+ve) & BLACK one for Negative (-ve)
9. Each speaker has black stamp steel basket with black powder paint on them
10. Embossed logo on speaker basket & around speaker magnet for a bold outlook
11. Metal mesh face grille for speakers safety

Technical Specifications:

1. Speaker size: 5x7"
2. Speaker type: Coaxial
3. Impedance per speaker (woofer+tweeter): 4-Ohm
4. Power per speaker: 60W (RMS) | 120W (MAX)
5. Total system power: 120W (RMS) | 240W (MAX)

Woofer:

1. Voice coil (dia): 1.4"
2. Rated impedance: 4Ω (Ohms)
3. Sweep voltage: 13 V
4. Output SPL (@1w/1m): 88 dB
5. Resonant frequency: 75 Hz
6. Frequency response (@SPL -10dB): 40 Hz ~ 6 kHz
7. Magnet weight: 21 Oz
8. Magnet type: Y30 ferrite

Tweeter:

1. Rated impedance: 4Ω (Ohms)
2. Sweep voltage: 2.8 V
3. Output SPL (@1w/1m): 92dB
4. Tweeter size (dia): 25 mm
5. Tweeter type: Silk-dome covered with metal mesh face grille
6. Magnet type: Neo

Crossover:

1. Crossover circuit: 3.3μF capacitor / 50V
2. Filter for tweeter: 6dB

Mounting / Installation Parameters:

1. Cutout diameter: 179mm / 7"
2. Outer diameter: 229mm / 9"
3. Mounting depth: 67mm / 2.6"
