MESO-12 // 1500 Watts RMS 12 Inch Car Subwoofer

Regular price 23% OFF Before: $399.99 Sale pricePrice: $309.99
/
$309.99
COIL CONFIGURATION
Details

The coveted Meso-12-D2 12 Inch Car Subwoofer provides a conservatively rated 1500 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.

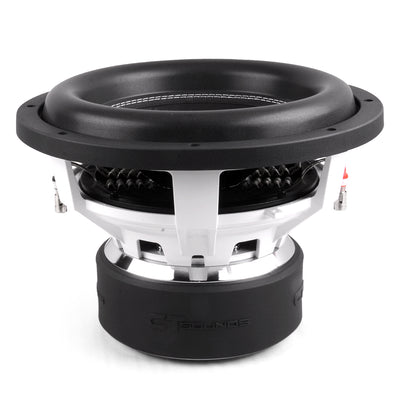

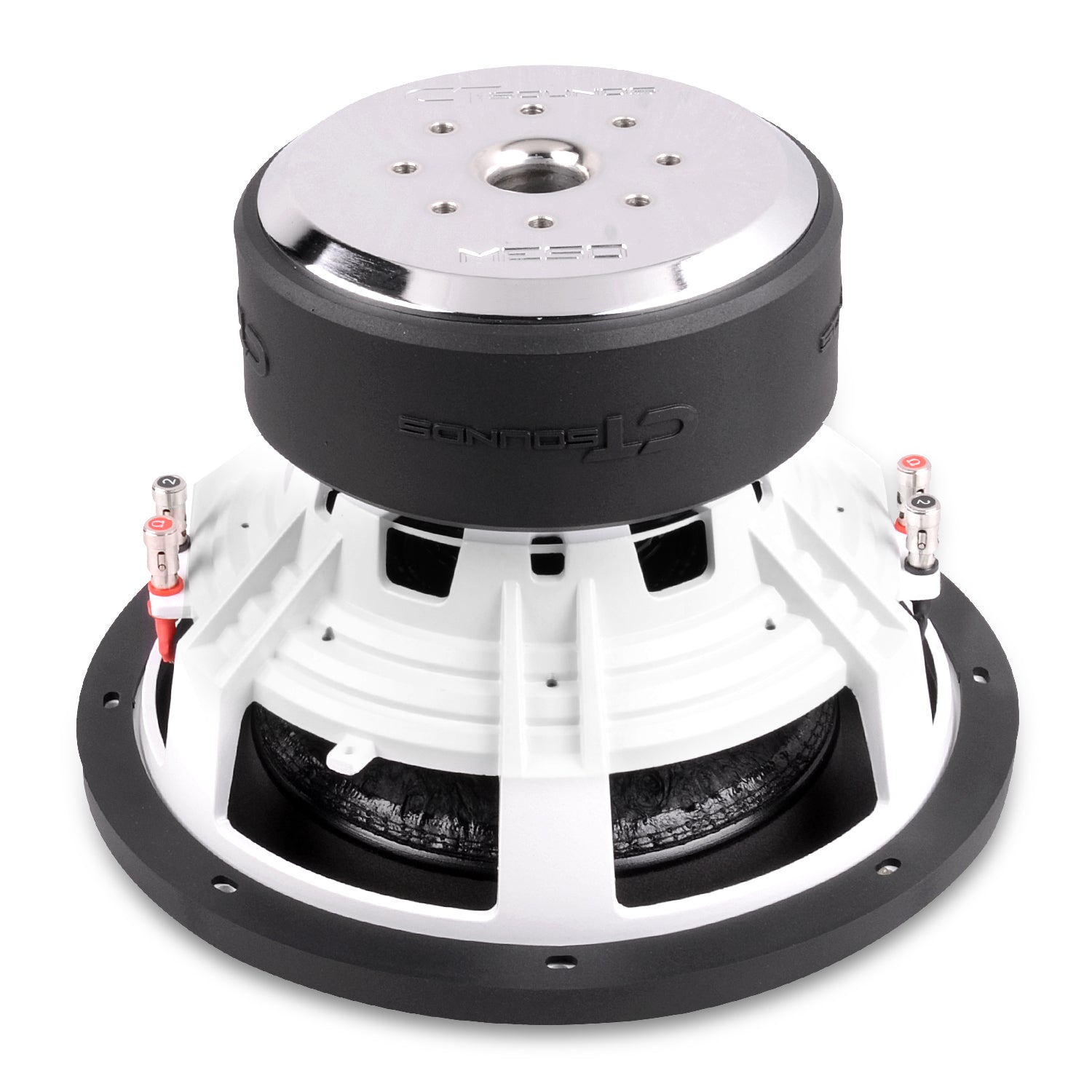

The subwoofer features a 3 inch - 4 layer black vented copper wiring voice coil, triple slug Y35 grade optimized motor, die-cast aluminum basket, competition mega foam surround, dual braided tinsel leads, and a pure nomex spider pack. Boasting a conservative rating of 1500 Watts RMS, this 12-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.

Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 12 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.

Quick Facts:
RMS Power: 1500 Watts
MAX Power: 3000 Watts
Voice Coil Configuration: Dual 2 Ohm
Push Terminal Size: 8 Gauge
Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 12"
Voice Coil Configuration: Dual 2 Ohm
RMS Power: 1500 Watts
MAX Power: 3000 Watts
Voice Coil Type: 3 Inch - 4 Layer Black Vented Copper Voice Coil
Magnet Type: Triple Stacked Y35 Ferrite Magnet
Bottom Plate Type: Signature Chrome Low Carbon Iron Bottom Plate
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 5% Carbon Fiber Reinforcement
Tinsel Lead Type: Dual Braided Flat Copper Tinsel Leads
Terminal Type: 4 Gauge Push Terminals
Basket Type: Cast Aluminum
Spider Material: Pure Nomex
T/S Parameters:
Qes: 0.44
Qms: 2.25
Qts: 0.37
Fs: 32.75 Hz
Vas: 22.29 L
Mms: 334.44 g
Cms: 0.0764 m/N
Re: 4 Ω
Bl: 25.16 Tm
Le: /
Sd: 471.4 cm²
Xmax - Single Way (mm): 18 mm
Xmax - Single Way (cm): 1.8 cm
Vd (Sd*Xmax): 848.52 cm³
SPL: 86.6 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 11.14"
Overall diameter 12.99"
Mounting depth 7.99"
Box Specifications:
Port Area 40 in 2
Displacement 0.18 ft 3
Flat Response Curve (SQ):
Sealed 1 ft 3
Ported 1 ft 3
Tuning Frequency 35 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 1.5 ft 3
Tuning Frequency 37 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.

Details

The coveted Meso-12-D4 12 Inch Car Subwoofer provides a conservatively rated 1500 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? Bass yourself to the upper limits of the atmosphere with explosive sound pressure.

The subwoofer features a 3 inch - 4 layer black vented copper wiring voice coil, triple slug Y35 grade optimized motor, die-cast aluminum basket, competition mega foam surround, dual braided tinsel leads, and a pure nomex spider pack. Boasting a conservative rating of 1500 Watts RMS, this 12-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.

Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 12 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.

Quick Facts:
RMS Power: 1500 Watts
MAX Power: 3000 Watts
Voice Coil Configuration: Dual 4 Ohm
Push Terminal Size: 8 Gauge
Specs
General Specifications:
Product Type: Car Subwoofer
Subwoofer Size: 12"
Voice Coil Configuration: Dual 4 Ohm
RMS Power: 1500 Watts
MAX Power: 3000 Watts
Voice Coil Type: 3 Inch - 4 Layer Black Vented Copper Voice Coil
Magnet Type: Triple Stacked Y35 Ferrite Magnet
Bottom Plate Type: Signature Chrome Low Carbon Iron Bottom Plate
Surround Type: Dual White Stitched Competition Mega Foam Surround
Cone Type: Composite Paper with 5% Carbon Fiber Reinforcement
Tinsel Lead Type: Dual Braided Flat Copper Tinsel Leads
Terminal Type: 4 Gauge Push Terminals
Basket Type: Cast Aluminum
Spider Material: Pure Nomex
T/S Parameters:
Qes: 0.47
Qms: 2.82
Qts: 0.4
Fs: 33.95 Hz
Vas: 20.309 L
Mms: 341.52 g
Cms: 0.06435 m/N
Re: 7 Ω
Bl: 32.43 Tm
Le: /
Sd: 471.4 cm²
Xmax - Single Way (mm): 18 mm
Xmax - Single Way (cm): 1.8 cm
Vd (Sd*Xmax): 848.52 cm³
SPL: 86.1 dB
Box Specs
Subwoofer Measurements:
Cutout diameter 11.14"
Overall diameter 12.99"
Mounting depth 7.99"
Box Specifications:
Port Area 40 in 2
Displacement 0.18 ft 3
Flat Response Curve (SQ):
Sealed 1 ft 3
Ported 1 ft 3
Tuning Frequency 35 Hz
Boomer Response Curve (SPL):
Sealed  -
Ported 1.5 ft 3
Tuning Frequency 37 Hz

*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.

*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.

*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
