CT-2000.1D // 2000 Watts RMS Monoblock Car Audio Amplifier
CT Sounds engineered the CT-2000.1D Compact Class D Monoblock Car Amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. If you want an amplifier that absolutely pounds and delivers clean power to your subwoofers then look no further.
This monoblock amplifier features a Low Pass Filter (LPF), Subsonic Filter, and Bass Boost so you can get the exact sound you are looking for out of your amplifier. The MOSFET power supply and proprietary heat dissipation design will ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint makes it easy to install in any car audio application.
You can sleep easy at night knowing your amplifier is protected from damage due to the amplifier's uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.
RMS Power: 2000w @ 1-ohm x 1-channel at 14.4v 1% THD
RMS Power: 1200w @ 2-ohm x 1-channel at 14.4v 1% THD
RMS Power: 650w @ 4-ohm x 1-channel at 14.4v 1% THD
- Monoblock Class D Power Amplifier
- Subsonic filter: 0 - 50Hz
- Frequency response: 0 Hz to 320 Hz
- LPF: 40-180Hz
- S/N: 93dB
- Bass Boost: 0 to 12 dB
- Bass Boost Frequency: 30-80Hz
- Input impedance: 22k ohms
- Operation voltage: DC 9-16V
- Minimum speaker impedance: 1ohm
- Remote volume Controller
- Continuously-Variable Input Gain Control
- Remote Turn-on/Turn-off circuit
- MOSFET Pulse Width Modulated Power Supply
- Soft Turn-on Circuit
- Thermal and Speaker Short Protection Circuit
- LED Power and Protection Indicators
- 15.00" Long * 5.12" Wide * 1.93" Tall
- (381mm Long * 140mm Wide * 49mm Tall)
1. Use pure OFC Copper Wiring. Make sure to use the correct gauge wiring, for the CT-700.1D we suggest using wiring that 4GA, anything smaller is never recommended for this amplifier. We do not recommend using CCA wiring. CCA wiring is cheap, it is made using primarily aluminum. The amplifier will perform less than optimal if you decide to us CCA wiring and may even shorten the life of the amplifier. Spend the extra money and do it right, pure Copper OFC wiring that brands such as Stinger offer are the ONLY way to go.
2. Make sure to properly ground your amplifier. We recommending grounding to the frame of your car. Make sure to clean the surface well, sand down the surface removing any paint, dirt, rust, etc.. so the connection is as strong as possible. We recommend using a bolt (do not use screws). Do not ground the amplifier to a seat bolt or any existing bolt on your vehicle (this a really a bad idea).
3. Tune your amplifier with a DD-1 or O-Scope, make sure it is not clipping. Clipping is the leading cause of subwoofer deaths.

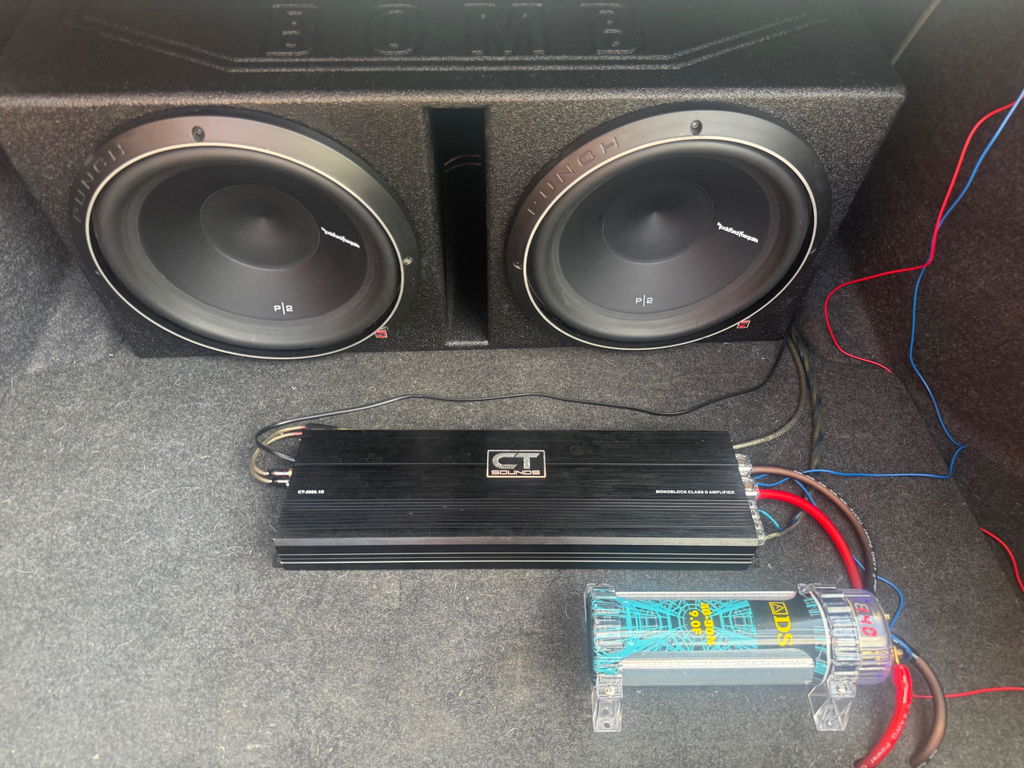

4. Do not mount your amplifier to your subwoofer box. Mount your amplifier away from the subwoofer enclosure in a secure location. Vibration is one of the leading causes of amplifier deaths.
Note: If your amplifier is getting hot and/or shutting off it is likely because you did not follow the above. A poor ground, a loose connection, using too small of wire, or not using OFC wiring is the main reasons this would happen.
