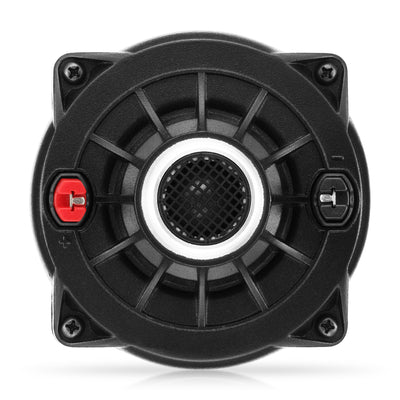

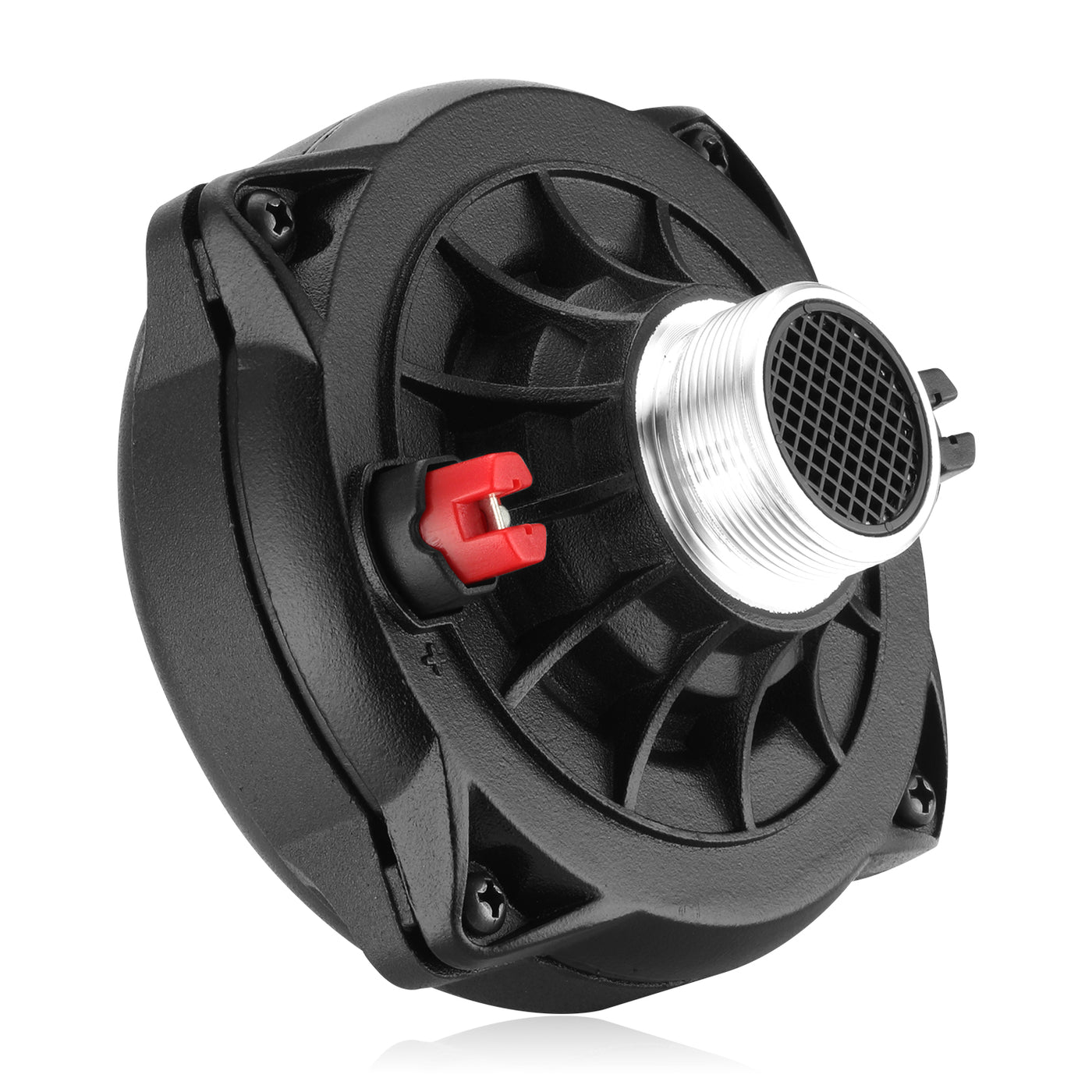

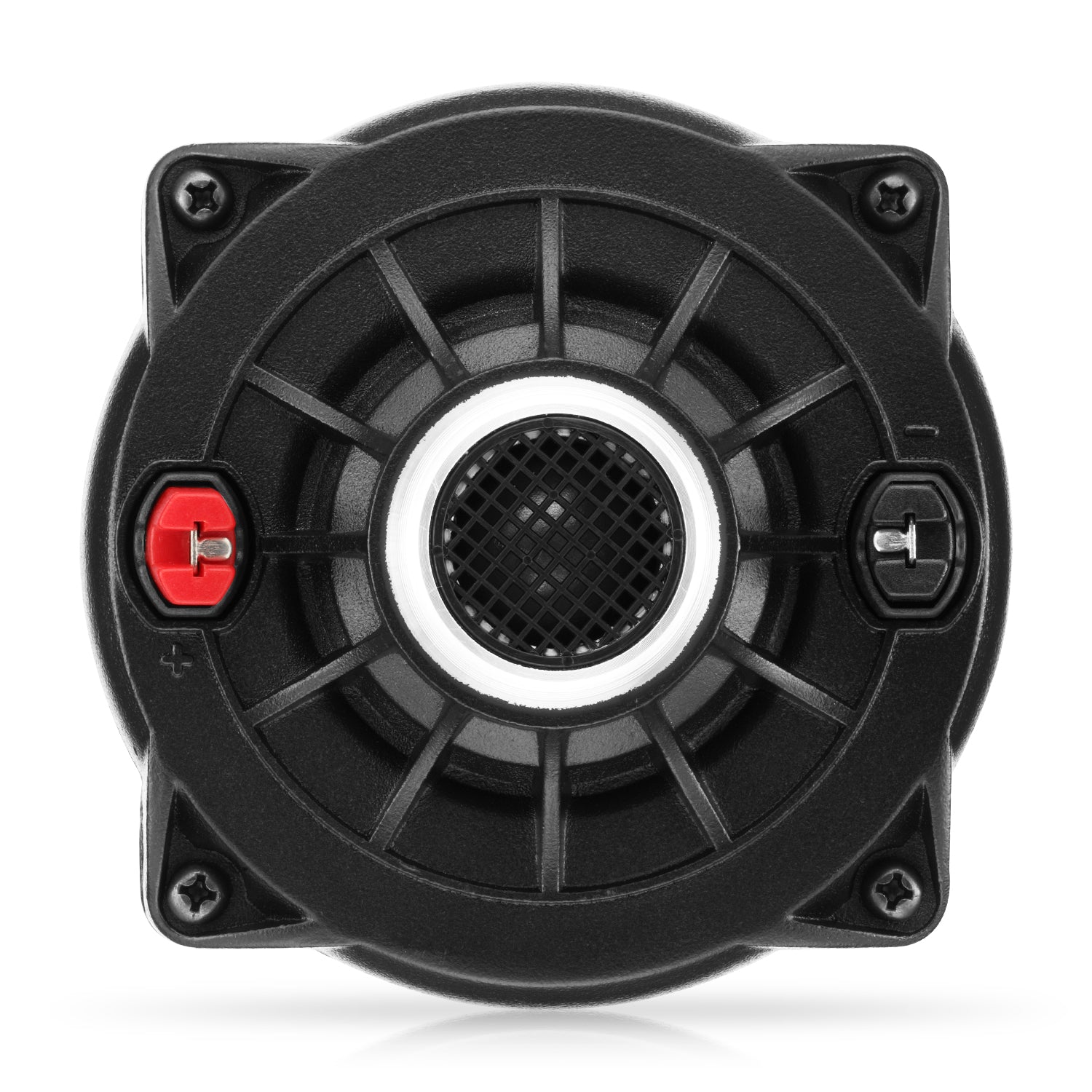

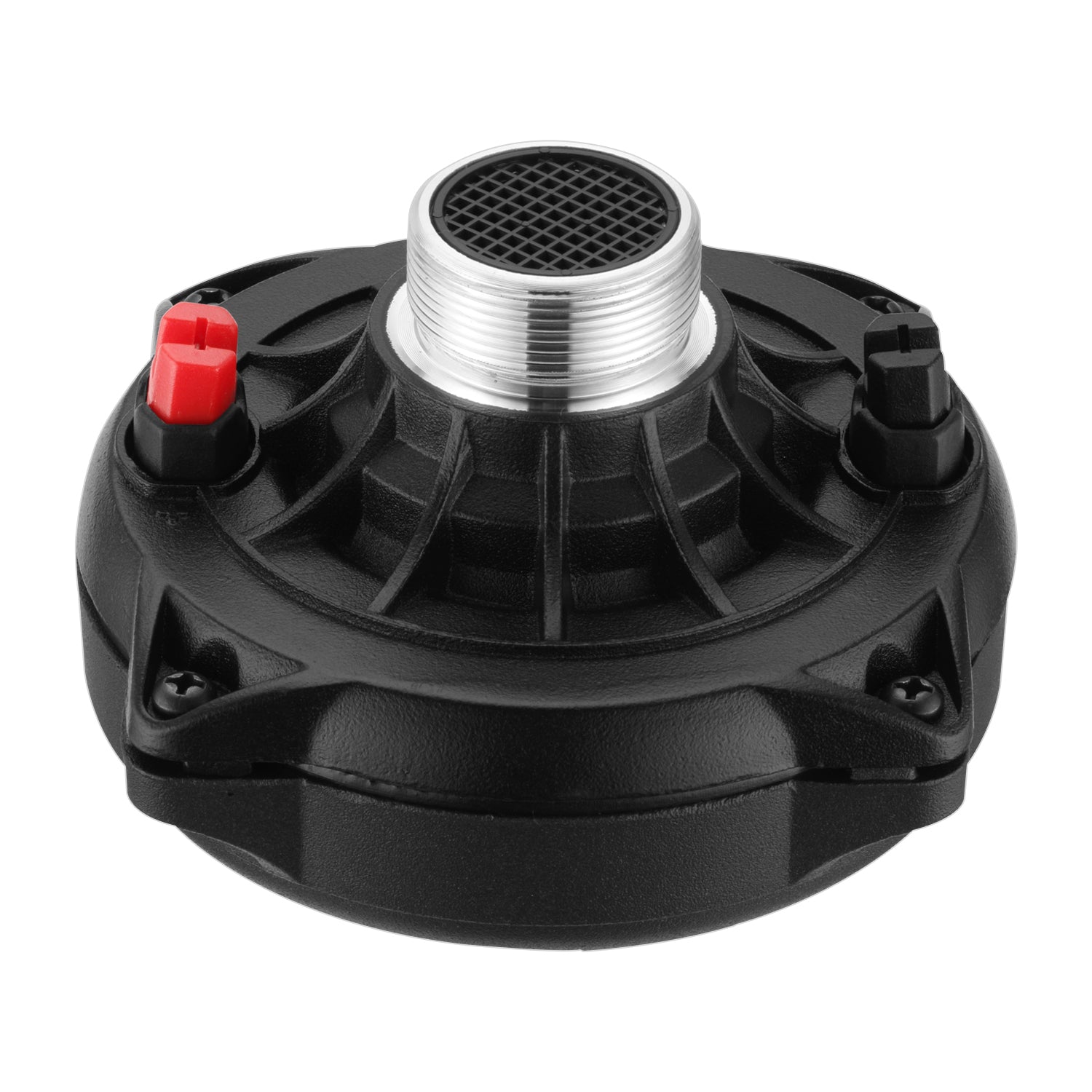

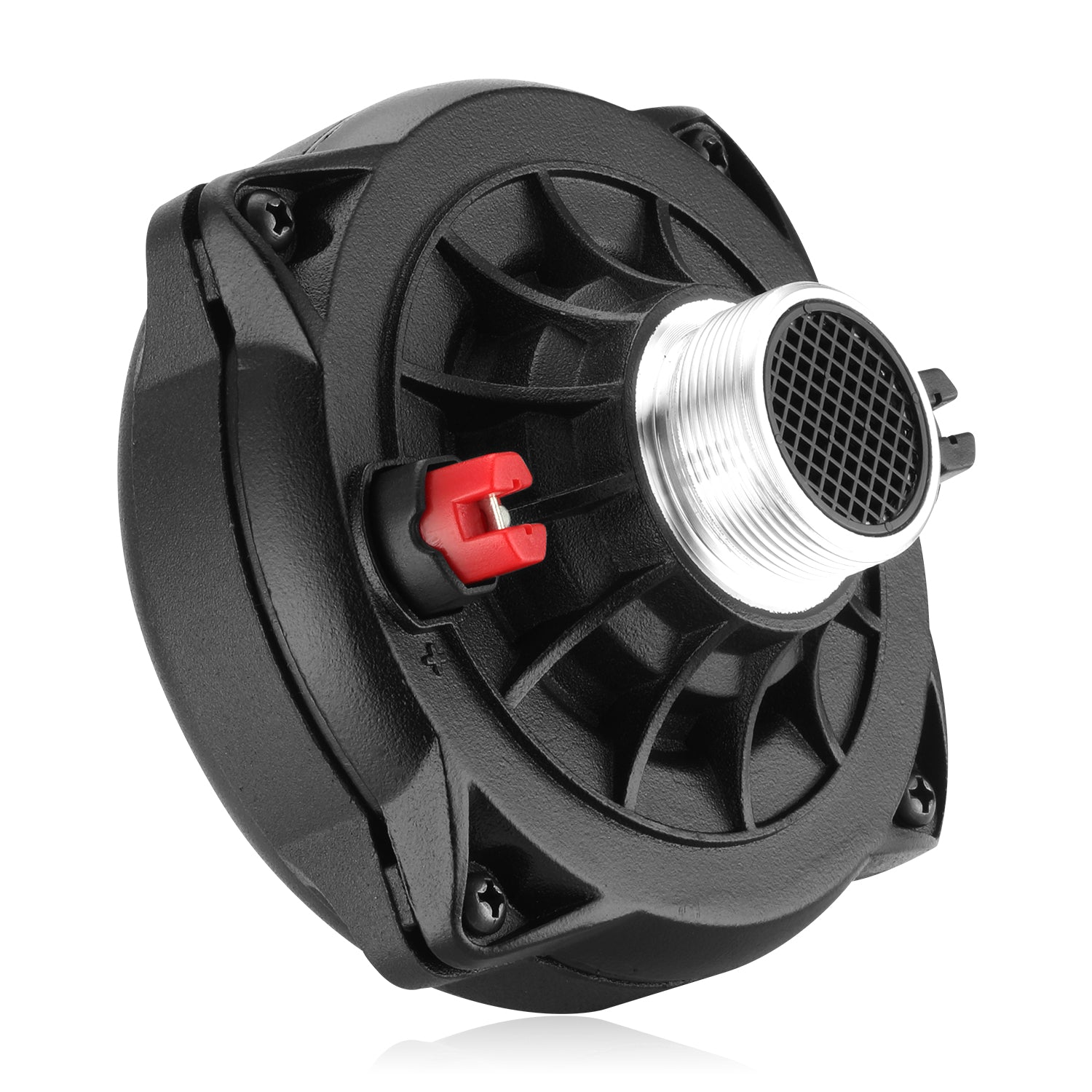

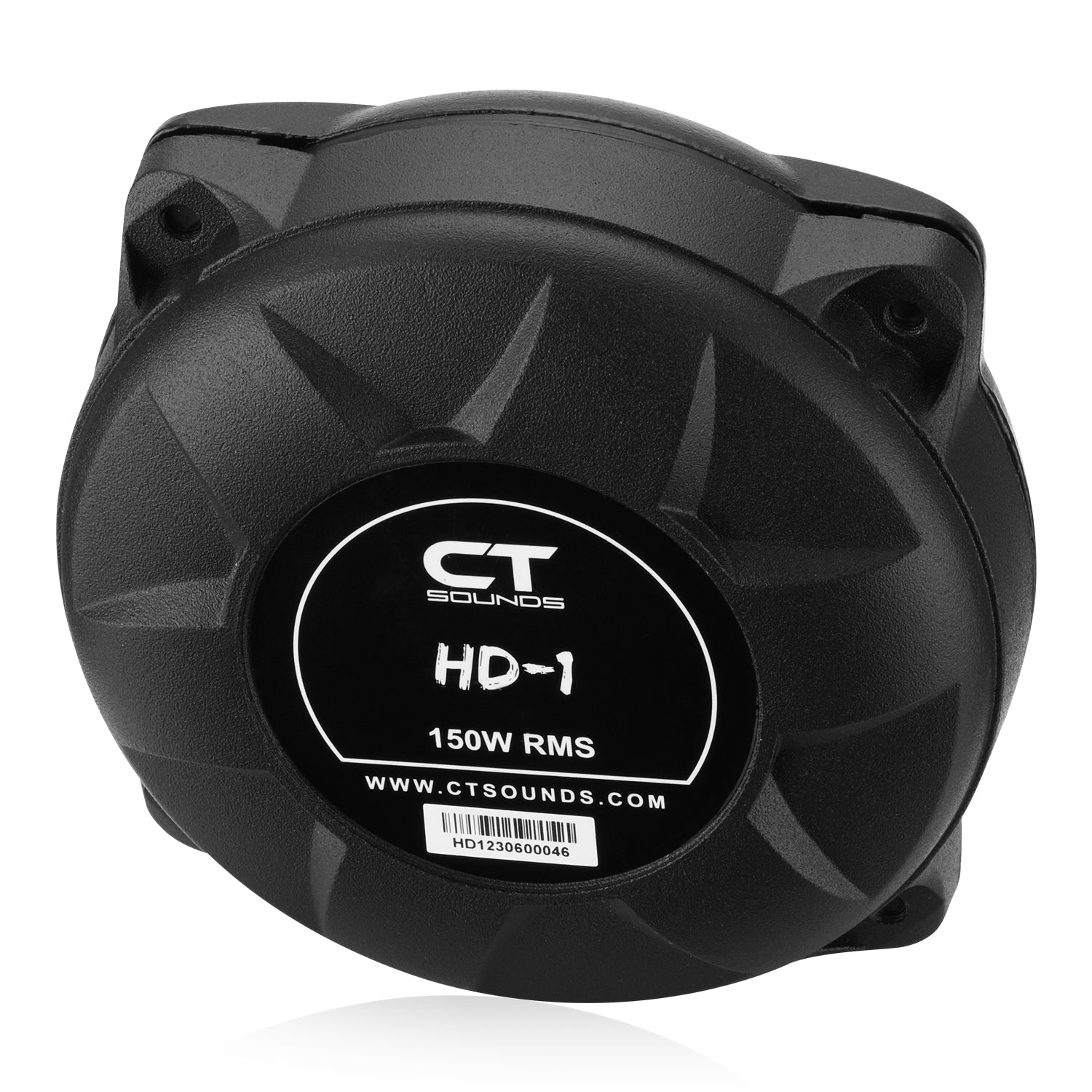

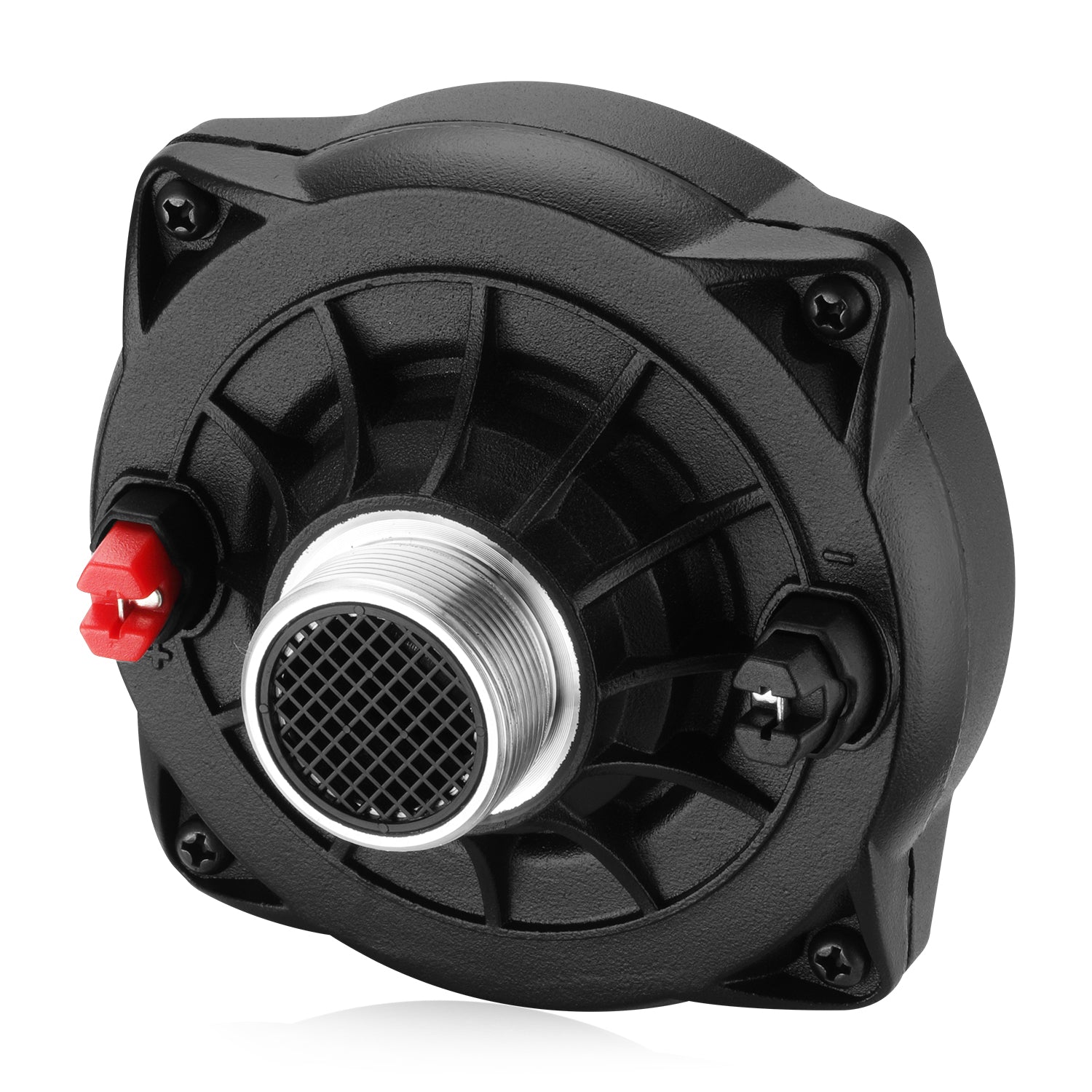

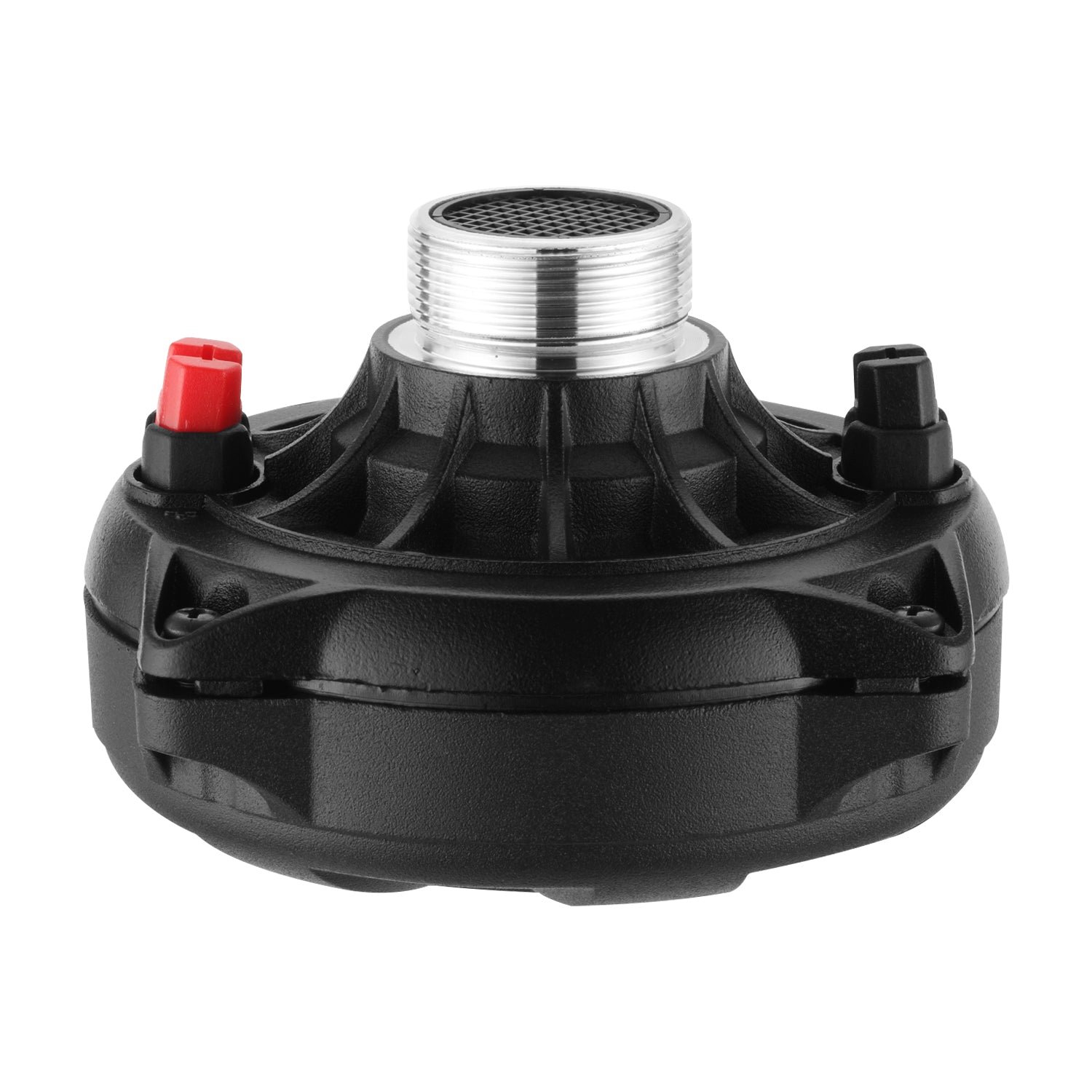

HD-1 // 1” 300-Watt Compression Horn Driver, Single
Regular price
25% OFF
Before: $59.99
Sale pricePrice: $44.99
Details
The CT Sounds HD-1 is a 300-watt compression horn driver engineered for mid-frequency audio reproduction. The universal 1-⅜” screw-on connection provides easy installation in midrange applications or small PA systems.
Crafted with precision and innovation, this horn driver features a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and copper-clad aluminum voice coil. Furthermore, the phenolic diaphragm reproduces every nuance of your favorite track with pristine accuracy.
Specs
| General Specifications: | |
| Product Type: | Compression Horn Driver |
| Product Size: | 1" |
| Impedance: | Single 8-Ohm |
| RMS Power: | 150 Watts |
| MAX Power: | 300 Watts |
| Tweeter Specifications: | |
| Voice Coil Size: | 1" |
| Voice Coil Winding Material: | CCAW |
| Voice Coil Former Material: | KSV |
| Diaphragm Material: | Phenolic |
| Magnet Type: | Ferrite |
| Output SPL (@1w/1m): | 108 dB |
| Frequency Response (@SPL -10dB): | 500 Hz - 13 kHz |
| Sweep Voltage: | 3V |
| Recommended Crossover Circuit: | 3.3 μF capacitor / 100 V |
| Recommended Crossover Filter: | 12 dB / octave |
| Recommended High Pass Crossover: | 2.5 kHz |
Mounting info

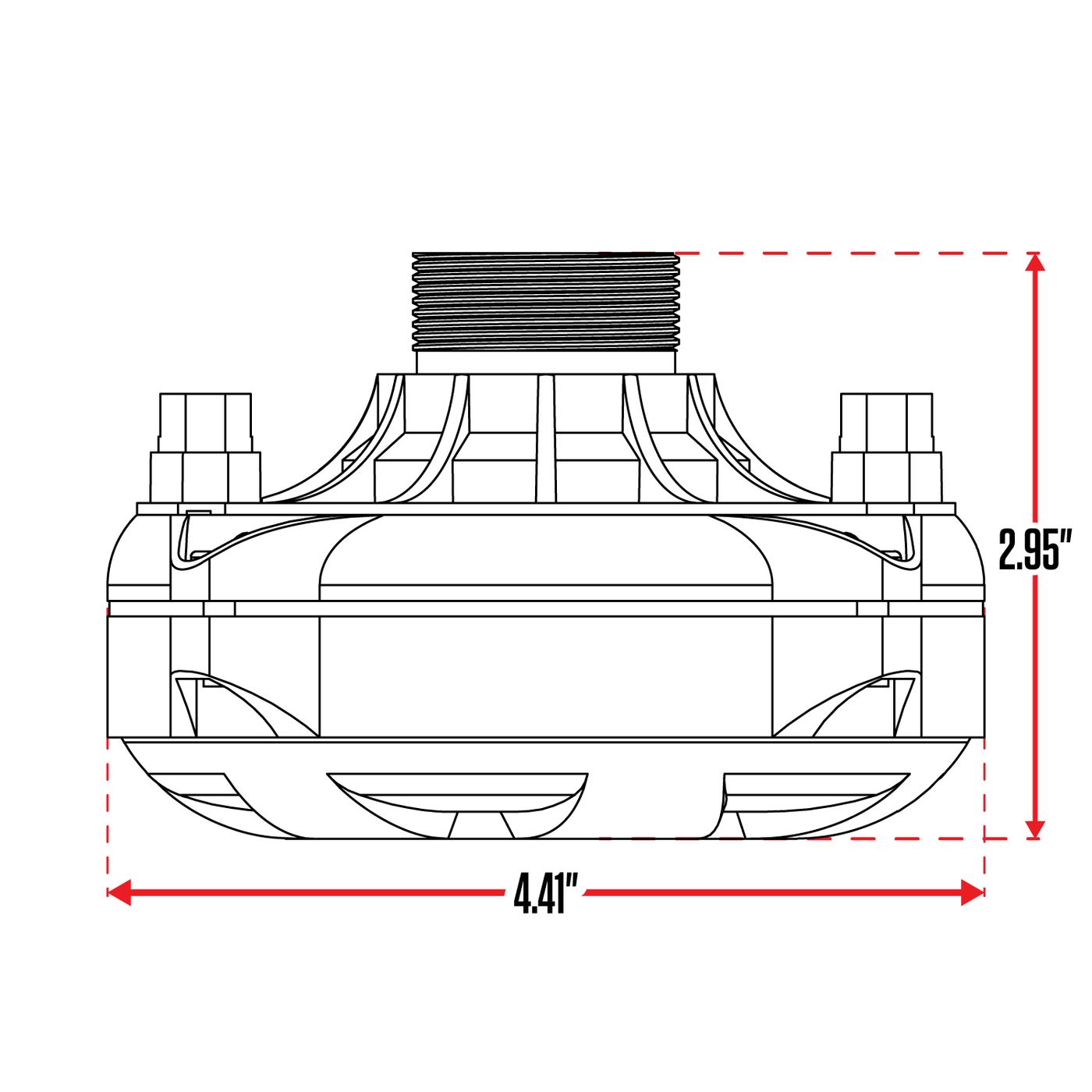

| Install Specifications: | |
| Overall Diameter: | 4.41" |
| Overall Height: | 2.95" |
| Horn Exit: | 1.00" |
