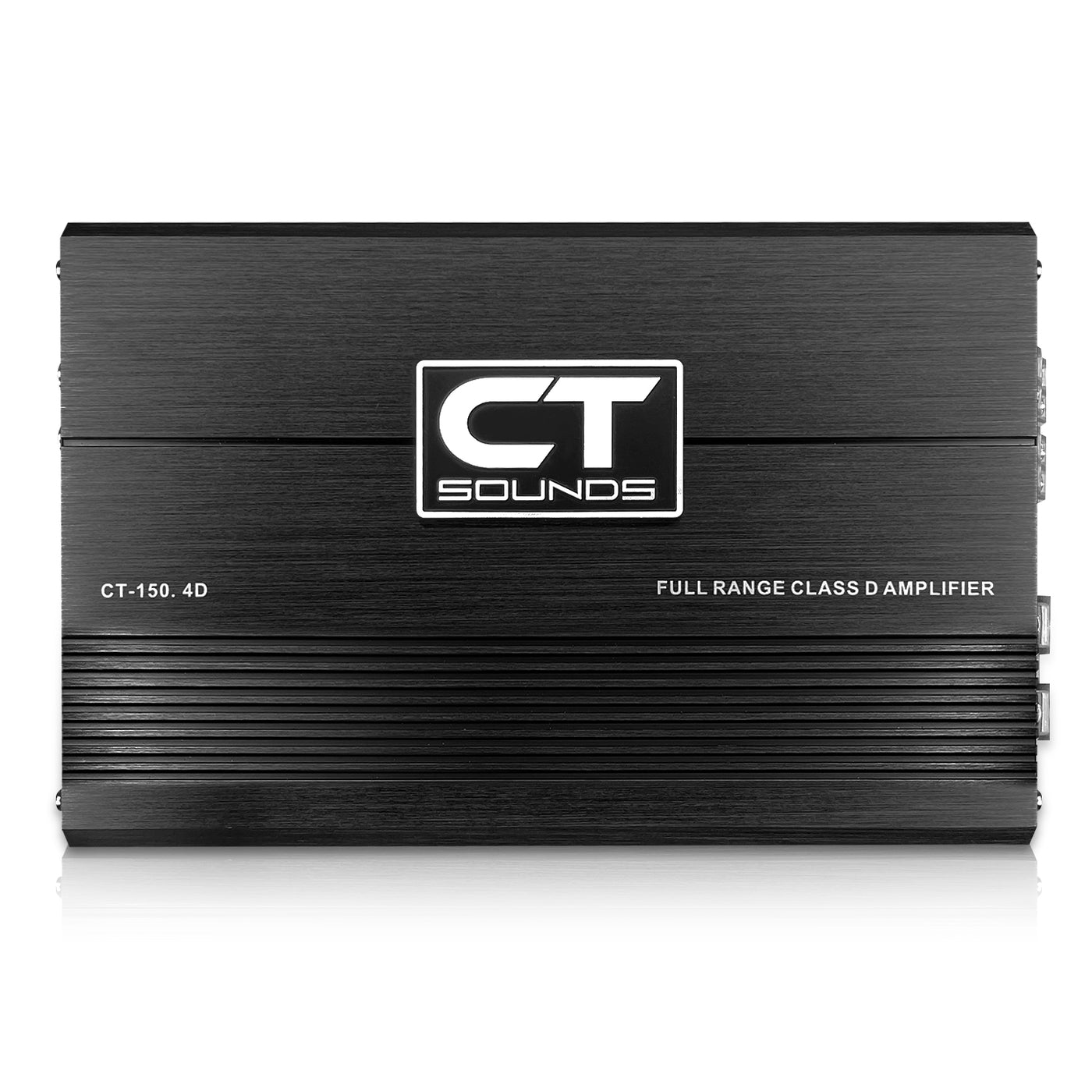

CT-150.4D // 1000 Watts RMS 4-Channel Car Audio Amplifier
Estimated to ship by 07/20/2022
CT Sounds engineered the CT-150.4D Full-Range Class D Multichannel Car Amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. If you want to do 100 mph down the highway with the windows down and still have crisp and clear sound over the wind noise then look no further.
This multi-channel amplifier features a Low Pass Filter (LPF) and Subsonic Filter so you can get the exact sound you are looking for out of your amplifier. The MOSFET power supply and proprietary heat dissipation design will ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint make it easy to install in any car audio application.
You can sleep easy at night knowing your amplifier is protected from damage due to the amplifiers uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.
| Quick Facts: | |
| RMS Power: 2Ω @ 14.4v | 250 Watts x 4-Channels |
| RMS Power: 4Ω @ 14.4v | 150 Watts x 4-Channels |
| RMS Power: 4Ω @ 14.4v | 475 Watts x 2-Channels Bridged |
| Power & Ground Input Size: | 4 Gauge |
| Speaker Input Size: | 12 Gauge |
| Features: | |
| Continuously-Variable Input Gain Control | ✔️ |
| Remote Turn-On / Turn-Off Circuit | ✔️ |
| MOSFET Pulse Width Modulated Power Supply | ✔️ |
| Soft Turn-On Circuit | ✔️ |
| High Voltage / Low Voltage Protection Circuit | ✔️ |
| Thermal and Speaker Short Protection Circuit | ✔️ |
| LED Power and Protection Indicators | ✔️ |
| Technical Specifications: | |
| Amplifier Type: | 4-Channel Amplifier |
| Amplifier Circuitry: | Class D |
| Built-In Crossover? | Yes; HPF, Full-Range, LPF |
| Bridgeable? | Yes |
| RMS Power @ 2 Ohm: | 250 Watts x 4-Ch (14.4v) |
| RMS Power @ 4 Ohm: | 150 Watts x 4-Ch (14.4v) |
| RMS Power @ 4 Ohm (Bridged): | 475 Watts x 2-Ch (14.4v) |
| Recommended Fuse: | 120A |
| Power & Ground Input Size: | 4 Gauge |
| Speaker Input Size: | 12 Gauge |
| Gain Adjustment: | 0.35v - 10v |
| Low Pass Filter (LPF): | 50 Hz - 500 Hz |
| High Pass Filter (HPF): | 50 Hz - 500 Hz |
| Bass Boost: | 0 dB - 12 dB |
| Bass Boost Frequency: | 45 Hz |
| Frequency Response: | 20 Hz - 20 kHz |
| Signal-To-Noise Ratio (S/N): | 96 dB |
| Damping Factor: | 170 |
| Input Impedance: | 22 Kohms |
| Input Sensitivity: | 350 mV |
| Operating Voltage: | 8.8v - 15.3v |
| Minimum Impedance: | 2 ohm |
| Dimensions: | |
| Length: | 10.15" |
| Width: | 5.63" |
| Height: | 2.19" |
