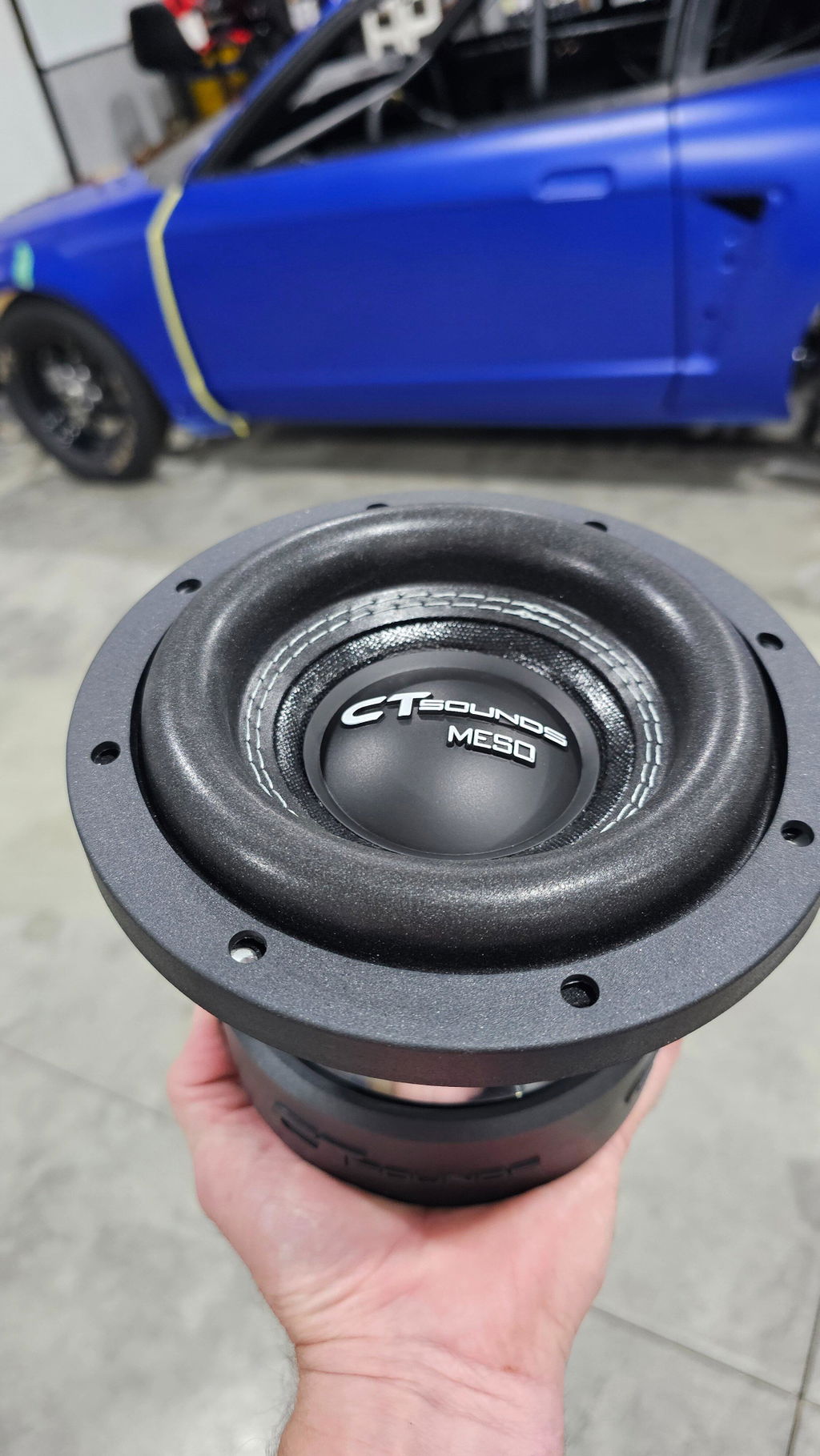

MESO-6-5 // 400 Watts RMS 6.5 Inch Car Subwoofer
The coveted Meso-6.5-D2 6.5 Inch Car Subwoofer provides a conservatively rated 400 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? The newest Meso-6.5 version was designed using competition mega foam surround, vastly improving the Xmax and excursion all while maintaining the responsiveness.
The subwoofer features a 2 inch - 4 layer copper-clad aluminum voice coil, 90 oz double stacked Y35 grade ferrite magnet, 21 mm chrome top plate, die-cast aluminum basket, competition mega foam surround, dual round weaved copper tinsel leads, and a Nomex blend spider pack. Boasting a conservative rating of 400 Watts RMS, this 6.5-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.
Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 6.5 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.
| Quick Facts: | |
| RMS Power: | 400 Watts |
| MAX Power: | 800 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Push Terminal Size: | 12 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 6.5" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 400 Watts |
| MAX Power: | 800 Watts |
| Voice Coil Type: | 2 Inch - 4 Layer High-Temperature CCAW Voice Coil |
| Magnet Type: | Double Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 5% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Round Weaved Copper Tinsel Leads |
| Terminal Type: | 8 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Poly-Cotton + Nomex Blend |
| T/S Parameters: | |
| Qes: | 0.78 |
| Qms: | 6.215 |
| Qts: | 0.692 |
| Fs: | 56.3 Hz |
| Vas: | 1.41 L |
| Mms: | 75.6 g |
| Cms: | 0.057 m/N |
| Re: | 1.02 Ω |
| Bl: | 6.92 Tm |
| Le: | 0.417 mH |
| Sd: | 132.73 cm² |
| Xmax - Single Way (mm): | 8 mm |
| Xmax - Single Way (cm): | 0.8 cm |
| Vd (Sd*Xmax): | 106.184 cm³ |
| SPL: | 83.2 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 5.91" |
| Overall diameter | 7.20" |
| Mounting depth | 5.08" |
| Box Specifications: | |
| Port Area | 12 in 2 |
| Displacement | 0.05 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | 0.2 ft 3 |
| Ported | 0.13 ft 3 |
| Tuning Frequency | 50 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 0.25 ft 3 |
| Tuning Frequency | 42 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
The coveted Meso-6.5-D4 6.5 Inch Car Subwoofer provides a conservatively rated 400 Watts RMS of sub-bass destruction. Can you handle the feeling of the Mesosphere in your car? The newest Meso-6.5 version was designed using competition mega foam surround, vastly improving the Xmax and excursion all while maintaining the responsiveness.
The subwoofer features a 2 inch - 4 layer copper-clad aluminum voice coil, 90 oz double stacked Y35 grade ferrite magnet, die-cast aluminum basket, competition mega foam surround, dual round weaved copper tinsel leads, and a Nomex blend spider pack. Boasting a conservative rating of 400 Watts RMS, this 6.5-inch subwoofer was engineered to savor the sonic euphoria that can only be achieved with a Meso Subwoofer.
Looking for a dropkick through a concrete wall? You have come to the Mesosphere; bang the lows or annoy the s*#% out of the neighbors, the CT Sounds Meso 6.5 Inch Subwoofer delivers the primordial bass that you don’t just hear, you feel.
| Quick Facts: | |
| RMS Power: | 400 Watts |
| MAX Power: | 800 Watts |
| Voice Coil Configuration: | Dual 4 Ohm |
| Push Terminal Size: | 12 Gauge |
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 6.5" |
| Voice Coil Configuration: | Dual 4 Ohm |
| RMS Power: | 400 Watts |
| MAX Power: | 800 Watts |
| Voice Coil Type: | 2 Inch - 4 Layer High-Temperature CCAW Voice Coil |
| Magnet Type: | Double Stacked Y35 Ferrite Magnet |
| Bottom Plate Type: | Signature Chrome Low Carbon Iron Bottom Plate |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 5% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Dual Round Weaved Copper Tinsel Leads |
| Terminal Type: | 8 Gauge Push Terminals |
| Basket Type: | Cast Aluminum |
| Spider Material: | Poly-Cotton + Nomex Blend |
| T/S Parameters: | |
| Qes: | 0.69 |
| Qms: | 6.45 |
| Qts: | 0.591 |
| Fs: | 58.9 Hz |
| Vas: | 1.58 L |
| Mms: | 77.6 g |
| Cms: | 0.06 m/N |
| Re: | 1.53 Ω |
| Bl: | 19.2 Tm |
| Le: | 0.535 mH |
| Sd: | 132.73 cm² |
| Xmax - Single Way (mm): | 8 mm |
| Xmax - Single Way (cm): | 0.8 cm |
| Vd (Sd*Xmax): | 106.184 cm³ |
| SPL: | 83.8 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 5.91" |
| Overall diameter | 7.20" |
| Mounting depth | 5.08" |
| Box Specifications: | |
| Port Area | 12 in 2 |
| Displacement | 0.05 ft 3 |
| Flat Response Curve (SQ): | |
| Sealed | 0.2 ft 3 |
| Ported | 0.13 ft 3 |
| Tuning Frequency | 50 Hz |
| Boomer Response Curve (SPL): | |
| Sealed | - |
| Ported | 0.25 ft 3 |
| Tuning Frequency | 42 Hz |
*Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
*Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
